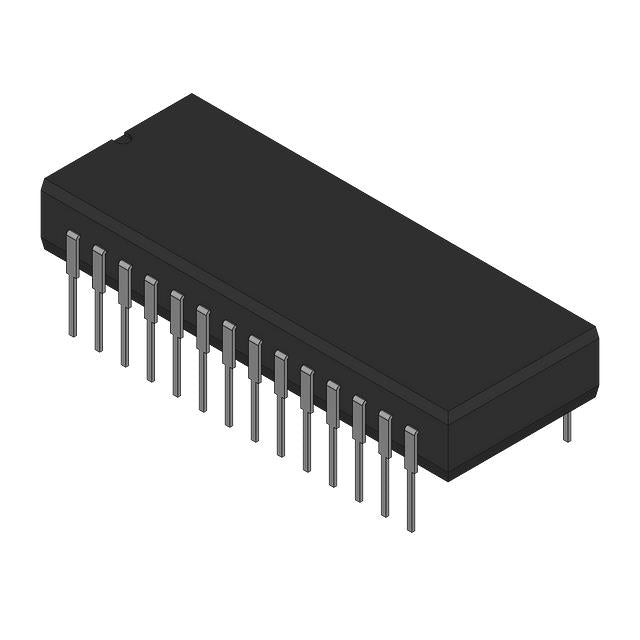

Analog Devices Inc. AD9023BZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $548.92 | $548.92 |
| 15+ | $126.25 | $1,893.75 |
| 25+ | $123.51 | $3,087.75 |
| 50+ | $116.65 | $5,832.50 |
| 100+ | $102.92 | $10,292.00 |
| N+ | $20.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD9023 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 20M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 2:3 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | Internal |
| Voltage - Supply, Analog | -5.45V ~ -4.95V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -5.45V ~ -4.95V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
The AD9023BZ from Analog Devices is a high-performance 12-bit Analog-to-Digital Converter (ADC) engineered for demanding high-speed applications. With a sampling rate of 20 MSPS and a single input channel, it delivers reliable and accurate conversion of analog signals. Its parallel interface ensures seamless integration with digital processors, while the internal reference simplifies design. Housed in a robust 28-CDIP package, this ADC is well-suited for data acquisition, medical imaging, and industrial automation systems.
- High-Speed Precision: 12-bit resolution at 20 MSPS ensures accurate digitization of fast-changing signals without sacrificing detail.
- Simplified Design: The internal reference voltage eliminates the need for external reference circuitry, reducing component count and board space.
- Robust Interface: The parallel output interface allows for high-throughput data transfer, ideal for real-time processing systems.
- Reliable Performance: The S/H architecture ensures stable sampling, while the -25°C to 85°C range supports industrial environments.
High-Speed Data Acquisition Systems
The AD9023BZ's 20 MSPS sampling rate and 12-bit resolution make it ideal for digitizing fast transient signals in data acquisition systems, ensuring accurate capture of dynamic events.
Medical Imaging Equipment
In ultrasound and other medical imaging devices, the high-speed parallel output and S/H architecture enable precise conversion of analog sensor data, contributing to clearer image resolution.
Industrial Automation & Control
For industrial process control, this ADC converts analog signals from sensors (e.g., temperature, pressure) with high accuracy, enabling real-time monitoring and closed-loop control systems.
Telecommunications Infrastructure
The 20 MSPS sampling capability supports digitizing IF (Intermediate Frequency) signals in communication receivers, facilitating software-defined radio applications.
Test & Measurement Instruments
In oscilloscopes and spectrum analyzers, the AD9023BZ provides the necessary speed and resolution to accurately measure and display high-frequency waveforms.
Radar & Sonar Systems
The wide bandwidth and fast sampling rate are critical for processing echo signals in radar and sonar, enabling precise target detection and ranging.
- Q: What type of ADC is the AD9023BZ?
- A: The AD9023BZ is a high-speed Analog-to-Digital Converter (ADC) featuring a sample-and-hold (S/H) architecture.
- Q: What is the resolution of the AD9023BZ?
- A: The AD9023BZ provides 12-bit resolution, offering fine granularity for precise signal digitization.
- Q: What is the maximum sampling rate of the AD9023BZ?
- A: It supports a maximum sampling rate of 20 MSPS (Mega Samples Per Second), suitable for high-frequency signal capture.
- Q: How many input channels does the AD9023BZ have?
- A: This ADC features a single input channel (1 channel).
- Q: What digital interface does the AD9023BZ use?
- A: It utilizes a parallel interface for high-speed data transfer to microcontrollers or DSPs.
- Q: What is the operating temperature range?
- A: The AD9023BZ operates over an industrial temperature range of -25°C to 85°C and comes in a 28-pin CDIP package.
