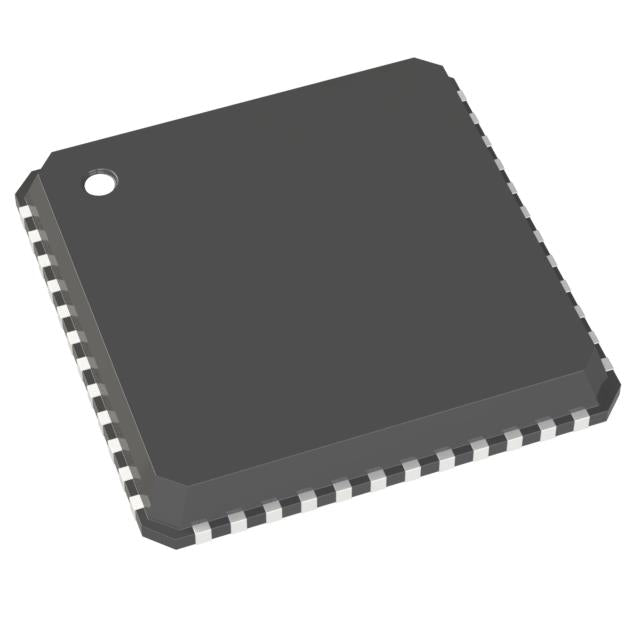

Analog Devices Inc. AD9246BCPZ-105
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $82.04 | $82.04 |
| 15+ | $79.45 | $1,191.75 |
| 25+ | $77.72 | $1,943.00 |
| 50+ | $73.41 | $3,670.50 |
| 100+ | $64.77 | $6,477.00 |
| N+ | $12.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 105M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 48-LFCSP-VQ (7x7) |
| ROHS |  |
The AD9246BCPZ-105 is a high-speed, 14-bit analog-to-digital converter (ADC) from Analog Devices, designed for applications that demand exceptional speed and precision. With a sampling rate of 105 MSPS, it excels in digitizing high-frequency signals with outstanding dynamic performance. The device features a single input channel and a parallel interface for high-throughput data transfer. Its sample-and-hold architecture ensures accurate signal acquisition. Packaged in a 48-VFQFN Exposed Pad, this ADC is a top choice for communications, radar, and medical imaging systems.
- Ultra-High Sampling Rate: 105 MSPS enables the capture of very fast signals, making it ideal for advanced radar and communication systems.
- High Resolution: 14-bit resolution provides excellent signal fidelity for demanding imaging and measurement applications.
- Industrial Temperature Range: -40°C to 85°C operation ensures reliability in harsh environments.
- Compact Package: The 48-VFQFN package saves board space while delivering high performance.
High-Performance Communications
The AD9246BCPZ-105's 105 MSPS sampling rate makes it ideal for high-speed communication systems, including cable modems and wireless infrastructure, where wide bandwidth and high dynamic range are required.
Advanced Radar and Sonar
In defense and marine applications, this ADC's high speed and resolution enable precise detection and ranging in radar and sonar systems.
Medical Imaging Systems
For high-end medical imaging like CT scanners and digital X-ray, the AD9246 provides the speed and accuracy needed to produce detailed diagnostic images.
High-Speed Data Acquisition
In scientific research and test equipment, this ADC allows for the capture of fast transient signals with high fidelity, essential for analyzing high-frequency phenomena.
Software-Defined Radio
The wide bandwidth and high sampling rate make it suitable for SDR platforms, enabling flexible and reconfigurable radio systems.
- Q: What is the resolution of the AD9246BCPZ-105?
- A: The AD9246BCPZ-105 is a 14-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It features a sampling rate of 105 MSPS (105M samples per second).
- Q: How many input channels does the AD9246BCPZ-105 have?
- A: This ADC has a single (1) input channel.
- Q: What interface does the AD9246BCPZ-105 use?
- A: It uses a Parallel interface for data output.
- Q: What is the architecture of this ADC?
- A: It utilizes a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the operating temperature range?
- A: It operates over an industrial temperature range of -40°C to 85°C and comes in a 48-VFQFN Exposed Pad package.
