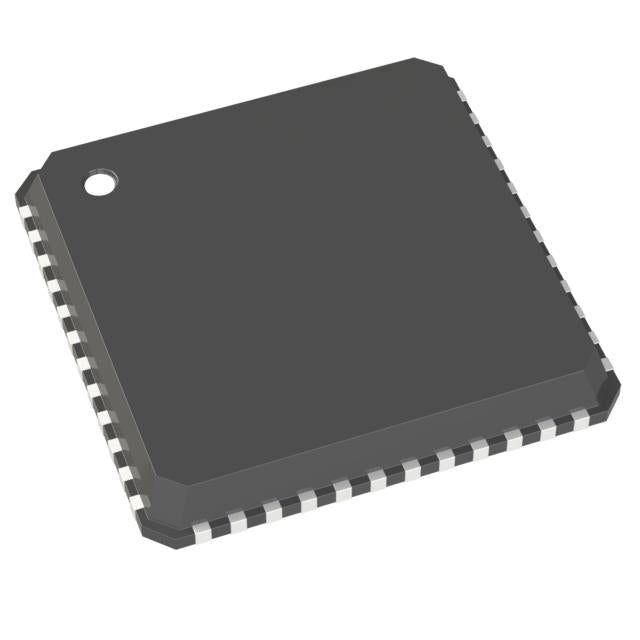

Analog Devices Inc. AD9246BCPZ-125
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $96.34 | $96.34 |
| 15+ | $93.30 | $1,399.50 |
| 25+ | $91.27 | $2,281.75 |
| 50+ | $86.20 | $4,310.00 |
| 100+ | $76.06 | $7,606.00 |
| N+ | $15.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 125M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 48-LFCSP-VQ (7x7) |
| ROHS |  |
The AD9246BCPZ-125 is a high-performance 14-bit analog-to-digital converter from Analog Devices, designed for demanding high-speed applications. It offers a sampling rate of 125 MSPS, ensuring accurate capture of fast-changing signals. With a single input channel and a parallel interface, it integrates easily into digital signal processing chains. Its internal reference simplifies design, while the compact 48-VFQFN package is suitable for space-constrained systems. Typical applications include communications, test equipment, and medical imaging.
- High-Speed Sampling: 125 MSPS enables digitization of high-frequency signals for radar and communications.
- 14-Bit Resolution: Provides fine amplitude detail, improving measurement accuracy in test equipment.
- Internal Reference: Reduces external component count, simplifying PCB layout and lowering system cost.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial environments.
- Compact Package: 48-VFQFN CSP saves board space in portable and dense designs.
High-Speed Data Acquisition
The 125 MSPS sampling rate and 14-bit resolution make it ideal for digitizing wide-bandwidth signals in test and measurement equipment, ensuring high fidelity.
Radar and Communication Systems
Its high dynamic performance supports IF sampling in radar receivers and communication transceivers, enabling direct digitization of intermediate frequencies.
Medical Imaging
In ultrasound and MRI systems, the high speed and resolution help capture fine details in fast-changing analog signals for clearer images.
Portable Instrumentation
The internal reference and compact 48-VFQFN package reduce external component count, saving board space in battery-powered devices.
Industrial Automation
With a wide -40°C to 85°C temperature range, it reliably converts sensor signals in harsh industrial environments.
Communications Infrastructure
Used in base stations for digitizing multiple channels, the parallel interface simplifies high-speed data routing to FPGAs or DSPs.
- Q: What is the resolution of the AD9246BCPZ-125?
- A: The AD9246BCPZ-125 is a 14-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: It supports a high-speed sampling rate of 125 MSPS (125M SPS).
- Q: How many input channels does it have?
- A: This ADC features a single input channel.
- Q: What digital interface does it use?
- A: It utilizes a parallel digital output interface for high-speed data transfer.
- Q: What is the ADC architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What package is available?
- A: It comes in a 48-VFQFN Exposed Pad (CSP) package.
