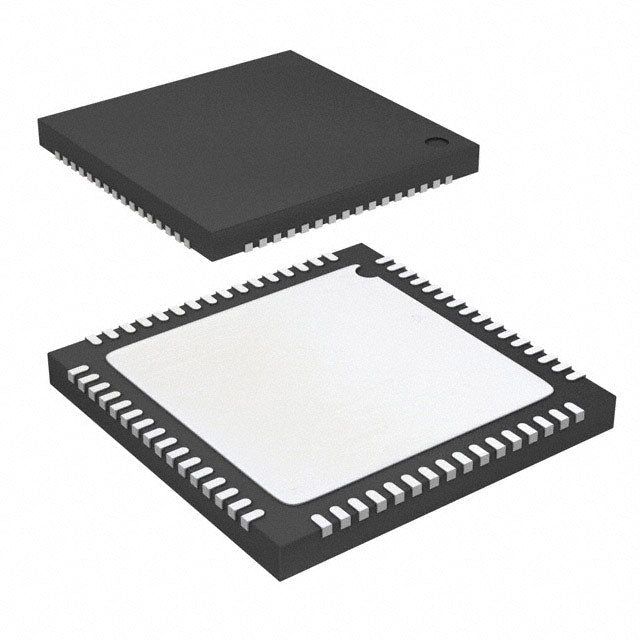

Analog Devices Inc. AD9648TCPZ-125-EP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $132.96 | $132.96 |
| 15+ | $128.76 | $1,931.40 |
| 25+ | $125.96 | $3,149.00 |
| 50+ | $118.97 | $5,948.50 |
| 100+ | $104.97 | $10,497.00 |
| N+ | $20.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 125M |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 64-LFCSP (9x9) |
| ROHS |  |
The AD9648TCPZ-125-EP is a dual-channel, 14-bit analog-to-digital converter (ADC) from Analog Devices, offering a sampling rate of 125 MSPS. It features both LVDS parallel and standard parallel interfaces, providing flexibility in system design. Designed for extreme environments, it operates from -55°C to +125°C, making it ideal for defense, aerospace, and high-temperature industrial applications.
- Extended Temperature Range: Rated for -55°C to +125°C, ensuring reliable operation in extreme environments.
- Dual-Channel Design: Two synchronized ADCs in one package reduce board space and simplify system integration.
- Flexible Interface: Supports both LVDS and parallel outputs, offering design flexibility for various digital backends.
- High-Speed Sampling: 125 MSPS enables digitization of wideband signals for advanced communication and radar systems.
Defense and Aerospace
The AD9648TCPZ-125-EP's extended temperature range (-55°C to +125°C) makes it suitable for military and aerospace applications, including radar and electronic warfare systems.
Diversity Receivers
With 2 channels and 125 MSPS, this ADC is ideal for diversity receivers in communications, where multiple antenna signals are digitized to improve signal reliability.
High-Temperature Industrial
In oil and gas exploration, downhole drilling tools operate at extreme temperatures. This ADC's wide temperature range ensures reliable operation in such harsh environments.
Medical Imaging
The 14-bit resolution and dual channels support high-quality ultrasound and CT imaging systems, providing accurate digitization of sensor signals.
Software-Defined Radio
For SDR platforms, the AD9648TCPZ-125-EP digitizes wideband signals with high dynamic range, enabling flexible and reconfigurable radio systems.
- Q: What is the AD9648TCPZ-125-EP?
- A: It is a 14-bit, dual-channel analog-to-digital converter (ADC) with a sampling rate of 125 MSPS.
- Q: What is the resolution?
- A: The resolution is 14 bits.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 125 MSPS.
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interfaces are supported?
- A: It supports both LVDS parallel and standard parallel interfaces.
- Q: What is the temperature range?
- A: It operates over an extended temperature range of -55°C to +125°C.
