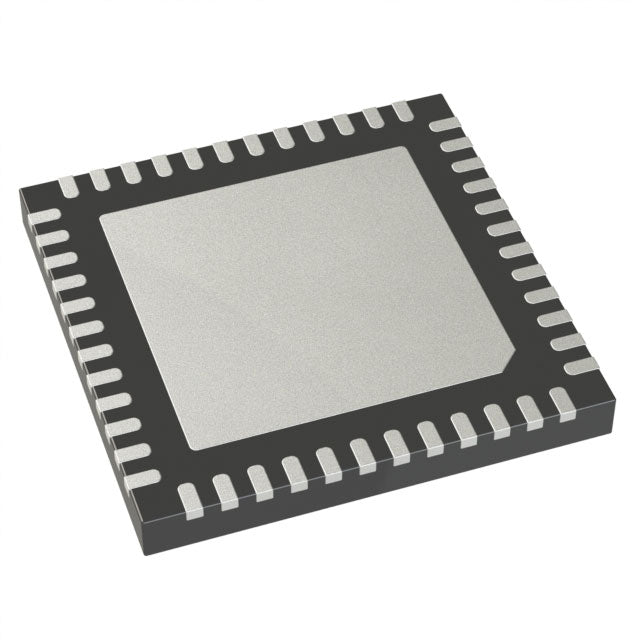

Analog Devices Inc. AD9940BCPZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.29 | $8.29 |
| 15+ | $8.03 | $120.45 |
| 25+ | $7.86 | $196.50 |
| 50+ | $7.42 | $371.00 |
| 100+ | $6.55 | $655.00 |
| N+ | $1.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tray |
| Type | CDS (Correlated Double Sampler) |
| Number of Channels | 1 |
| Resolution (Bits) | - |
| Sampling Rate (Per Second) | 56M |
| Data Interface | - |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 48-LFCSP (7x7) |
| ROHS |  |
AD9940BCPZ - Correlated Double Sampler (CDS) IC
The AD9940BCPZ from Analog Devices is a high-performance Correlated Double Sampler (CDS) designed for precision signal processing applications. This single-channel CDS features a 56M sampling rate and operates from a 2.7V to 3.6V dual analog and digital supply, making it ideal for imaging systems, medical equipment, and industrial instrumentation requiring superior noise reduction and signal integrity.
Key Features & Benefits
- High-Speed Sampling: 56M samples per second for fast signal acquisition
- Single-Channel CDS: Optimized correlated double sampling for noise reduction
- Wide Operating Range: -25°C to 85°C for industrial and automotive applications
- Compact Package: 48-WFQFN Exposed Pad CSP / 48-LFCSP (7x7mm) surface mount
- RoHS Compliant: Meets environmental standards for global markets
- Long Lifecycle Support: Backed by Analog Devices' commitment to product availability
Applications
Perfect for CCD/CMOS imaging systems, medical imaging equipment, high-resolution scanners, scientific instrumentation, and precision data acquisition systems requiring correlated double sampling technology.
Why Choose Our AD9940BCPZ?
As an authorized distributor, we provide 100% authentic Analog Devices components with full traceability, original manufacturer documentation, and compliance certifications (RoHS/REACH). Every unit ships with quality assurance and long-term availability commitment for your critical design-in projects.
AD9940BCPZ.pdf
