Analog Devices Inc. AD9940BCPZRL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.06 | $8.06 |
| 15+ | $7.80 | $117.00 |
| 25+ | $7.63 | $190.75 |
| 50+ | $7.21 | $360.50 |
| 100+ | $6.36 | $636.00 |
| N+ | $1.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Type | CDS (Correlated Double Sampler) |
| Number of Channels | 1 |
| Resolution (Bits) | - |
| Sampling Rate (Per Second) | 56M |
| Data Interface | - |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

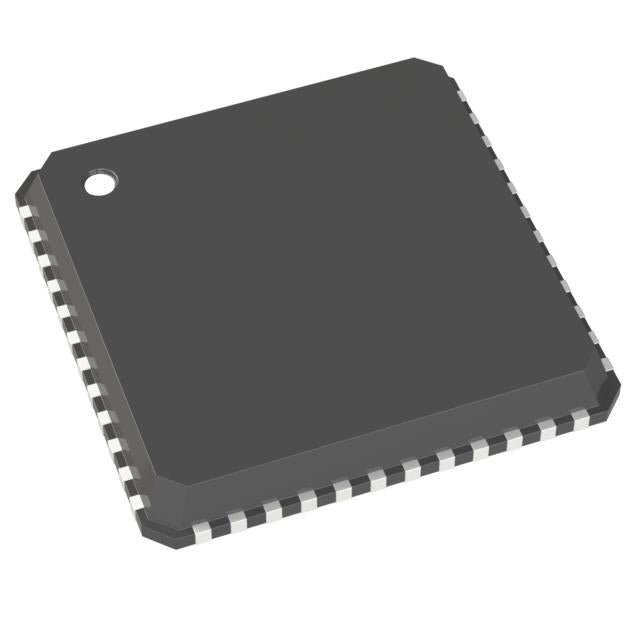

| Package / Case | 48-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 48-LFCSP-VQ (7x7) |
| ROHS |  |
AD9940BCPZRL - Correlated Double Sampler IC
The AD9940BCPZRL from Analog Devices is a high-performance 1-channel CDS (Correlated Double Sampler) designed for precision signal processing applications. With a 56M sampling rate and wide operating temperature range, this IC delivers reliable performance in demanding industrial, medical, and imaging systems.
Key Features:
- High-Speed Sampling: 56M samples per second for fast signal acquisition
- Flexible Power Supply: 2.7V to 3.6V analog and digital voltage supply
- Extended Temperature Range: -25°C to 85°C operating temperature
- Compact Package: 48-VFQFN Exposed Pad, CSP (48-LFCSP-VQ 7x7mm)
- RoHS Compliant: Environmentally friendly, meets global compliance standards
Applications:
Ideal for CCD/CMOS imaging systems, medical imaging equipment, industrial inspection systems, and high-speed data acquisition applications requiring correlated double sampling for noise reduction.
Why Choose AD9940BCPZRL?
As an authorized distributor, we provide 100% authentic Analog Devices components with full traceability, manufacturer documentation, and long lifecycle support. Every unit ships with RoHS/REACH compliance certification and is backed by our quality guarantee.
AD9940BCPZRL.pdf
