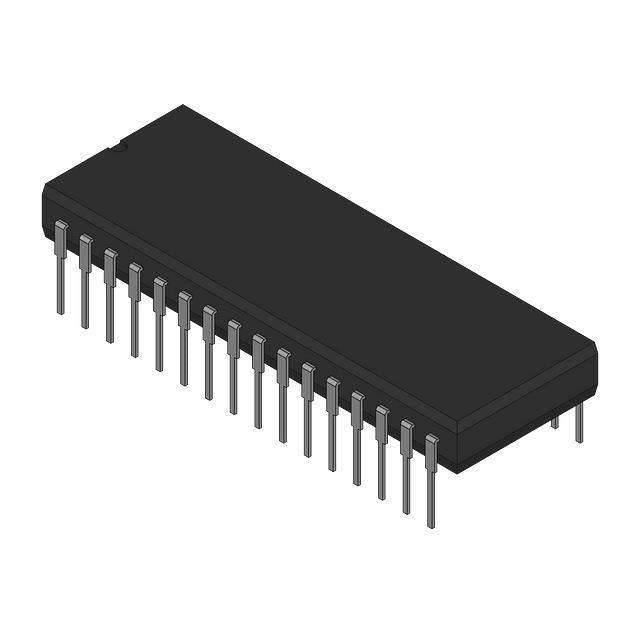

Analog Devices Inc. ADADC72KD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $299.28 | $299.28 |
| 15+ | $289.83 | $4,347.45 |
| 25+ | $283.53 | $7,088.25 |
| 50+ | $267.78 | $13,389.00 |
| 100+ | $236.27 | $23,627.00 |
| N+ | $47.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | - |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | - |
| Voltage - Supply, Digital | - |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 32-CDIP (0.900", 22.86mm) |
| Supplier Device Package | 32-BBDIP-H |
The ADADC72KD from Analog Devices is a high-precision 16-bit, single-channel ADC with a parallel interface. Requiring an external reference, it offers exceptional accuracy for demanding measurement applications. Packaged in a 32-pin CDIP (0.900", 22.86mm) ceramic package, it operates from -40°C to +85°C. This ADC is well-suited for precision weighing, scientific instrumentation, and industrial automation where high-resolution signal conversion is essential.
- Ultra-High Resolution: 16-bit output (65,536 levels) delivers exceptional accuracy for precision measurement systems.
- External Reference Flexibility: Allows designers to choose a reference optimized for their specific accuracy and temperature drift requirements.
- Industrial Temperature Range: -40°C to +85°C ensures reliable operation in harsh industrial environments.
- Rugged Ceramic Package: The 32-pin CDIP package provides excellent mechanical and thermal stability.
Precision Weighing Systems
The 16-bit resolution of the ADADC72KD enables highly accurate digitization of load cell outputs, making it ideal for industrial scales and force measurement.
Scientific Data Acquisition
For laboratory instruments requiring high precision, such as spectrometers and chromatographs, this ADC provides the necessary resolution for fine signal analysis.
Industrial Automation
In process control loops, the ADADC72KD's high resolution ensures precise monitoring of analog parameters like flow and level, improving system accuracy.
Medical Instrumentation
For patient monitoring devices that require high-fidelity signal conversion, the 16-bit ADC delivers detailed physiological data for accurate diagnosis.
Calibration Equipment
Used in calibration and metrology instruments, the ADADC72KD offers the precision needed to verify and adjust other electronic devices.
- Q: What is the ADADC72KD?
- A: The ADADC72KD is a 16-bit, single-channel Analog-to-Digital Converter (ADC).
- Q: What is the resolution of the ADADC72KD?
- A: It offers 16-bit resolution, providing 65,536 discrete output levels for high-precision measurements.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does the ADADC72KD use?
- A: It uses a parallel interface for data output.
- Q: What is the reference type?
- A: It requires an external reference for conversion accuracy.
- Q: What is the operating temperature range?
- A: It operates over the industrial temperature range of -40°C to +85°C.
