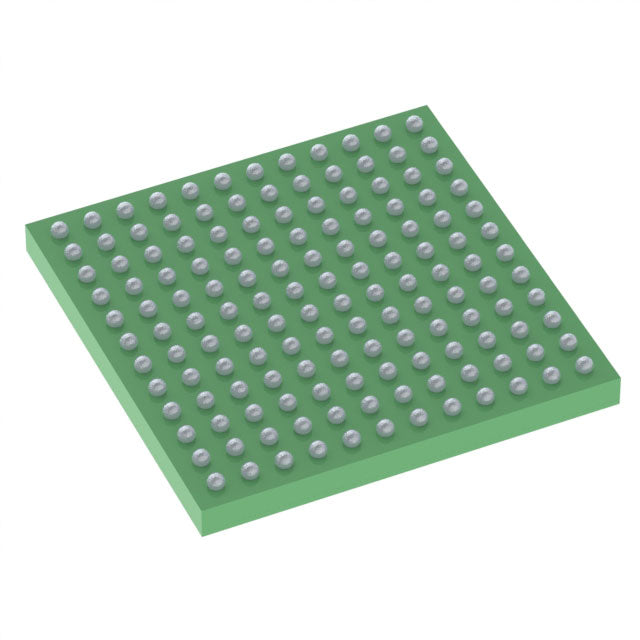

Texas Instruments ADC08DJ3200AAV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,242.15 | $1,242.15 |
| 15+ | $1,202.93 | $18,043.95 |
| 25+ | $1,176.78 | $29,419.50 |
| 50+ | $1,111.40 | $55,570.00 |
| 100+ | $980.65 | $98,065.00 |
| N+ | $196.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 3.2G, 6.4G |
| Number of Inputs | 1, 2 |
| Input Type | Differential, Single Ended |
| Data Interface | JESD204B, Serial |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 2 |
| Architecture | Folding Interpolating |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.05V ~ 1.15V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V |
| Features | Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 144-FBGA, FCBGA |
| Supplier Device Package | 144-FCBGA (10x10) |
| ROHS |  |
The ADC08DJ3200AAV is an 8-bit, ultra-high-speed analog-to-digital converter from Texas Instruments, capable of sampling at 6.4 GSPS in single-channel mode or 3.2 GSPS in dual-channel mode. Its MUX-ADC architecture and JESD204B serial interface make it ideal for RF sampling, radar, and wideband data acquisition systems. With an internal reference and operating temperature range of -40°C to 85°C, it is packaged in a compact 144-FBGA, designed for high-density, high-performance applications.
- Ultra-High Sampling Rate: 6.4 GSPS single-channel or 3.2 GSPS dual-channel, enabling direct RF sampling without downconversion.
- JESD204B Interface: Reduces pin count and simplifies PCB layout while supporting high-speed serial data transfer.
- Flexible Channel Configuration: Switch between 1 and 2 channels to optimize for bandwidth or multi-channel I/Q processing.
- Internal Reference: Eliminates external reference circuitry, reducing system complexity and BOM cost.
5G/6G Base Station Receivers
The 6.4 GSPS sampling rate in single-channel mode enables direct RF sampling of multi-GHz carriers, eliminating multiple downconversion stages.
Radar and Electronic Warfare
With 8-bit resolution and 3.2 GSPS per channel, it digitizes wideband radar returns, supporting high-resolution target detection in defense systems.
Software-Defined Radio (SDR)
The JESD204B interface and high sample rate allow SDR platforms to capture broad spectrum segments, enabling flexible frequency hopping and modulation schemes.
High-Speed Data Acquisition
For physics experiments and particle accelerators, the ADC08DJ3200AAV captures fast transient signals with 6.4 GSPS, ensuring no missed events.
Satellite Communication
Its dual-channel mode at 3.2 GSPS supports I/Q demodulation of wideband satellite links, improving spectral efficiency in ground stations.
Test and Measurement Equipment
Oscilloscopes and spectrum analyzers benefit from the 8-bit resolution at 6.4 GSPS, enabling accurate waveform capture of high-frequency signals.
- Q: What is the ADC08DJ3200AAV?
- A: It is an 8-bit, ultra-high-speed MUX-ADC from Texas Instruments, designed for RF sampling applications.
- Q: What is the maximum sampling rate?
- A: It supports dual-channel mode at 3.2 GSPS and single-channel mode at 6.4 GSPS.
- Q: How many channels are available?
- A: It can operate as a 1-channel or 2-channel device, configurable via the JESD204B interface.
- Q: What digital interface does it use?
- A: It uses JESD204B serial interface, ideal for high-speed data transfer to FPGAs.
- Q: What is the architecture?
- A: It uses a MUX-ADC architecture, enabling time-interleaved sampling for high throughput.
- Q: What is the package type?
- A: It comes in a 144-FBGA/FCBGA package, suitable for compact RF systems.
