Analog Devices Inc. ADE1201ACCZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 50.61 | Dhs. 50.61 |
| 15+ | Dhs. 49.01 | Dhs. 735.15 |
| 25+ | Dhs. 47.94 | Dhs. 1,198.50 |
| 50+ | Dhs. 45.28 | Dhs. 2,264.00 |
| 100+ | Dhs. 39.95 | Dhs. 3,995.00 |
| N+ | Dhs. 7.99 | Price Inquiry |
Request Quote / Inquiry

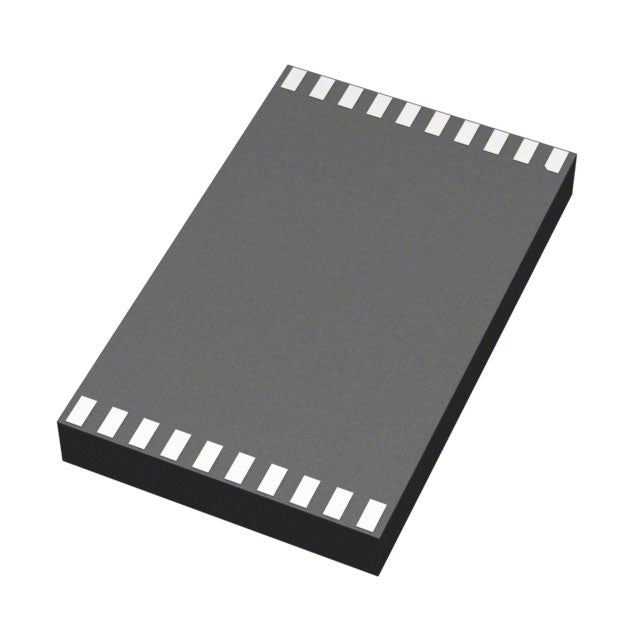

Analog Devices ADE1201ACCZ - 8-Bit Isolated ADC Module
The ADE1201ACCZ is a high-performance isolated analog-to-digital converter module from Analog Devices, designed for precision measurement applications requiring galvanic isolation. This single-channel ADC features 8-bit resolution with a 100kSPS sampling rate and SPI digital interface, making it ideal for industrial control, motor control, and power monitoring systems.
Key Features & Benefits
- Galvanic Isolation: Isolated module design ensures signal integrity and safety in high-voltage environments
- Fast Sampling: 100kSPS sampling rate enables real-time monitoring of dynamic signals
- Industry-Standard Interface: SPI digital interface simplifies integration with microcontrollers and DSPs
- Wide Operating Range: -40°C to 125°C temperature range supports harsh industrial environments
- Compact Footprint: Surface mount 20-LGA package (5x8mm) saves valuable board space
- Single Supply Operation: Simplified power design with 2.97V to 3.63V supply voltage
Applications
- Industrial process control and automation
- Motor drive and control systems
- Power supply monitoring and management
- Isolated sensor interfaces
- Medical instrumentation
- Automotive systems
Quality & Compliance
This product is RoHS compliant, meeting international environmental standards for hazardous substance restrictions. All components are sourced from authorized distributors with full traceability and come with manufacturer warranties.
Design Support & Resources
Complete datasheets, application notes, reference designs, and technical support are available to help you integrate the ADE1201ACCZ into your design. Our engineering team can provide design-in assistance for your specific application requirements.
Part Number: ADE1201ACCZ
Manufacturer: Analog Devices Inc.
Package: Tray packaging for production-scale orders
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Type | Isolated Module |
| Number of Channels | 1 |
| Resolution (Bits) | 8 b |
| Sampling Rate (Per Second) | 100k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.97V ~ 3.63V, 2.97V ~ 3.63V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-TFLGA |
| Supplier Device Package | 20-LGA (5x8) |
| ROHS |  |
ADE1201ACCZ.pdf
