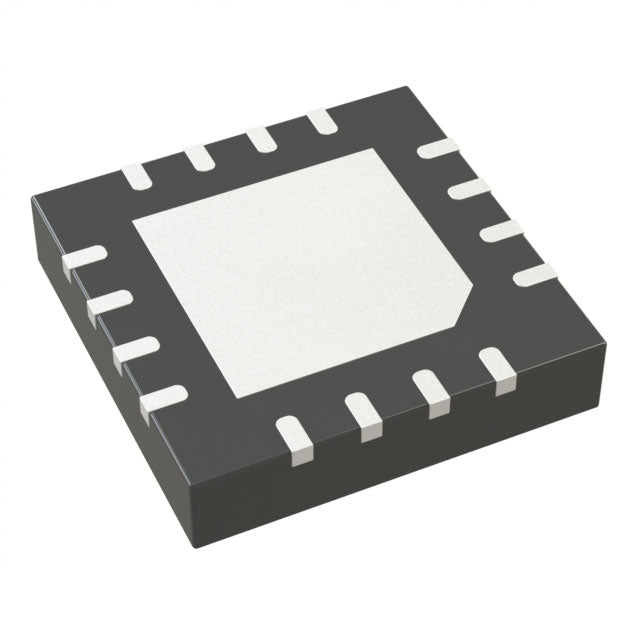

Analog Devices Inc. ADP1740ACPZ-0.75R7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.75V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 800 µA |
| Current - Supply (Max) | 1.8 mA |
| PSRR | 65dB ~ 54dB (1kHz ~ 100kHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (4x4) |
| ROHS |  |
The ADP1740ACPZ-0.75R7 is a high-current low dropout linear regulator from Analog Devices, delivering a fixed 0.75V output at up to 2A. It features an 800µA quiescent current and excellent PSRR of 65dB at 1kHz, making it suitable for noise-sensitive, high-performance digital loads. The 16-LFCSP (4x4) package provides excellent thermal performance for demanding applications.
- High Output Current: 2A capability supports power-hungry processors and FPGAs.
- Excellent PSRR: 65dB at 1kHz and 54dB at 100kHz ensures clean power for sensitive circuits.
- Low Fixed Voltage: 0.75V output matches modern low-voltage digital cores.
- Thermally Efficient Package: 16-LFCSP with exposed pad aids heat dissipation.
High-Current FPGA Core Supplies
The 2A output capability and 0.75V fixed voltage make it ideal for powering the core of modern FPGAs and ASICs that require high current at low voltage.
Processor and SoC Power
Provides a stable 0.75V rail for application processors in smartphones and tablets, supporting high-performance computing with minimal voltage droop.
DDR Memory Termination
Can be used for DDR3/DDR4 VTT termination, delivering the required 0.75V at high current for memory bus stability.
Telecom and Networking Equipment
The high PSRR (65dB at 1kHz) ensures clean power for network processors and switch ICs in base stations and routers.
Industrial Computing
Powers embedded PC cores and GPU modules in industrial automation, where reliable low-voltage high-current supply is critical.
- Q: What is the output voltage?
- A: The fixed output voltage is 0.75V.
- Q: What is the maximum output current?
- A: It can deliver up to 2A.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the quiescent current?
- A: The quiescent current is 800µA.
- Q: What is the PSRR performance?
- A: PSRR is 65dB at 1kHz and 54dB at 100kHz.
- Q: What package is available?
- A: It comes in a 16-LFCSP (4x4) package.
