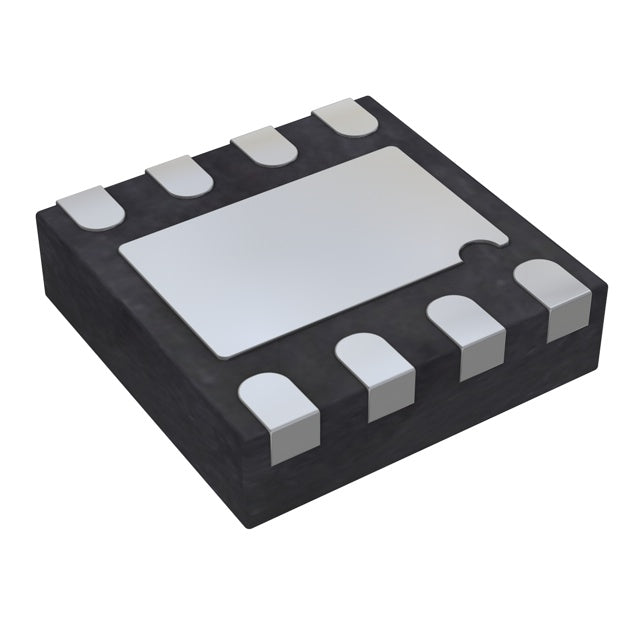

Analog Devices Inc. ADP222ACPZ-3330-R7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V, 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.26V @ 300mA, 0.26V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 450 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-UD (2x2) |
The ADP222ACPZ-3330-R7 is a dual-output, low dropout linear regulator from Analog Devices, delivering fixed 3.0V and 3.3V outputs. Each channel supports up to 300mA with a low dropout of 0.26V. Housed in a compact 8-LFCSP-UD (2x2) package and featuring a 150 µA quiescent current, this LDO is optimized for space-constrained, battery-powered applications requiring multiple voltage rails.
- Dual Outputs in Tiny Package: Two regulated rails (3.0V/3.3V) in a 2x2mm LFCSP, saving significant board space.
- High Current Density: 300mA per channel from a small package, suitable for power-hungry portable devices.
- Low Quiescent Current (150 µA): Extends battery life in always-on applications.
- Low Dropout (0.26V @ 300mA): Maintains regulation with minimal input-to-output voltage difference, improving efficiency.
Dual-Rail Power for Microcontrollers and Peripherals
Power a 3.3V MCU core and 3.0V memory or I/O from a single compact LDO, reducing component count and simplifying PCB layout in embedded systems.
Battery-Powered Medical Devices
The low 150 µA quiescent current and small 2x2mm package make it ideal for portable glucose monitors, pulse oximeters, and hearing aids where space and power are critical.
Precision Sensor Conditioning
Provide clean, stable 3.0V and 3.3V rails for sensor bridges and analog front-ends, minimizing noise-induced errors in measurement systems.
Wireless IoT Modules
Supply separate rails for the RF transceiver (3.3V) and baseband processor (3.0V), ensuring stable operation and reducing interference in connected devices.
Consumer Electronics Accessories
Power smart wearables, earbuds, and remote controls with a compact dual-output solution that fits tight form factors and extends battery life.
Industrial Control Interfaces
Drive 3.3V logic and 3.0V analog circuits in PLCs and process controllers, offering reliable regulation across industrial temperature ranges.
