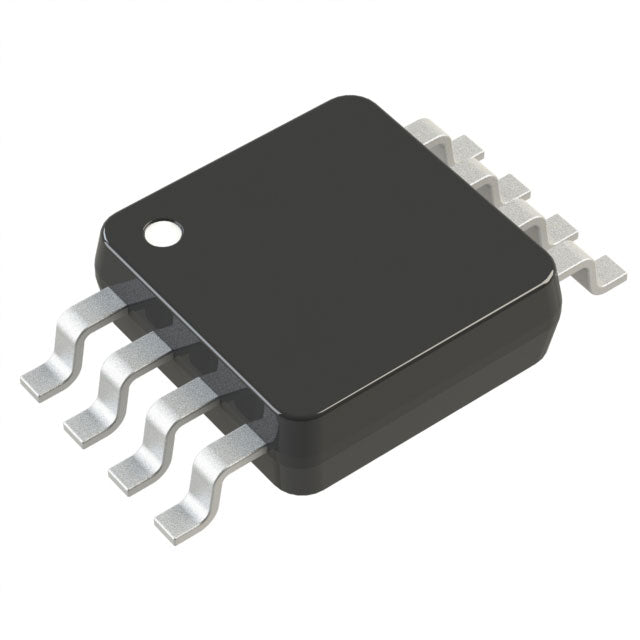

Analog Devices Inc. ADP3333ARMZ-3.15R7
Normaler Preis
$3.85
Normaler Preis
$4.05
Verkaufspreis
$3.85
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.85 | $3.85 |
| 15+ | $3.73 | $55.95 |
| 25+ | $3.65 | $91.25 |
| 50+ | $3.44 | $172.00 |
| 100+ | $3.04 | $304.00 |
| N+ | $0.61 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | anyCAP® |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 3.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.23V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 5.5 mA |
| PSRR | - |
| Control Features | Shutdown |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| ROHS |  |
The ADP3333ARMZ-3.15R7 is a 300mA LDO regulator delivering a fixed 3.15V output. It features a low 230mV dropout and 100µA quiescent current, balancing performance and efficiency. The 8-MSOP package is ideal for space-limited industrial and automotive designs.
- Higher current capability (300mA) supports more demanding loads.
- Low quiescent current (100µA) reduces standby power consumption.
- Low dropout (230mV) improves efficiency in battery applications.
- 8-MSOP package offers a small footprint with thermal performance.
High-Density Power Rails
The 8-MSOP package and 300mA output suit compact server and networking modules.
Precision Analog Supplies
Low quiescent current (100µA) and stable 3.15V output power precision DACs and references.
Battery Management
Efficient dropout (230mV) maximizes usable battery capacity in handheld devices.
Automotive Infotainment
Reliable 3.15V rail for display controllers and audio DSPs.
Industrial Sensors
Wide operating range and low noise support 4-20mA loop transmitters.
- Q: What is the output voltage?
- A: Fixed 3.15V output.
- Q: What is the maximum current?
- A: 300mA.
- Q: What is the dropout voltage?
- A: 230mV at 300mA.
- Q: What is the quiescent current?
- A: 100µA.
- Q: What package is available?
- A: 8-MSOP.
- Q: What is the input voltage range?
- A: Not specified in provided data.
Base Product Number ：
ADP3333ARMZ-3.15
