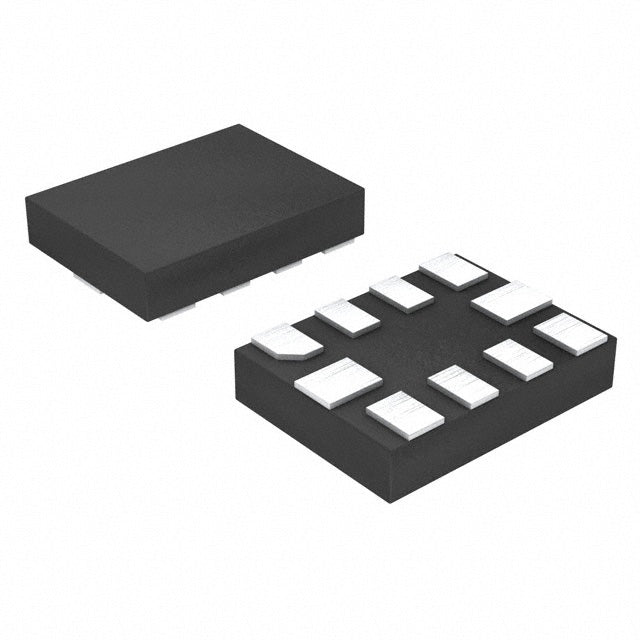

Texas Instruments ADS1115IRUGR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.22 | $4.22 |
| 15+ | $4.08 | $61.20 |
| 25+ | $4.00 | $100.00 |
| 50+ | $3.77 | $188.50 |
| 100+ | $3.33 | $333.00 |
| N+ | $0.67 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 860 |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-XFQFN |
| Supplier Device Package | 10-X2QFN (2x1.5) |
| ROHS |  |
The ADS1115IRUGR from Texas Instruments is a high-precision, 16-bit analog-to-digital converter designed for demanding measurement applications. It features a flexible input multiplexer (2 or 4 channels), a programmable gain amplifier (PGA), and an internal voltage reference, all in a compact 10-XFQFN package. With a sampling rate of 860 SPS and an I2C interface, this ADC is ideal for sensor signal conditioning, portable instrumentation, and industrial monitoring systems.
- High Precision: 16-bit resolution ensures accurate conversion of small analog signals, critical for sensor and measurement applications.
- Integrated PGA: The programmable gain amplifier allows direct connection to low-level sensors without external amplification, simplifying design.
- Flexible Input MUX: Supports 2 or 4 input channels, enabling multi-sensor monitoring with a single device.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for industrial and automotive environments.
- Compact Package: The 10-XFQFN package saves board space, ideal for space-constrained designs.
Precision Sensor Signal Digitization
The 16-bit resolution and internal PGA make the ADS1115IRUGR ideal for digitizing small analog signals from sensors like thermocouples, strain gauges, and pressure transducers, ensuring high accuracy.
Portable Data Acquisition Systems
With its low power consumption and compact 10-XFQFN package, this ADC is perfect for battery-powered data loggers and portable measurement devices.
Industrial Process Control
The wide operating temperature range (-40°C to 125°C) and 860 SPS sampling rate enable reliable monitoring of industrial parameters such as temperature, flow, and level in harsh environments.
Medical Instrumentation
The high resolution and internal reference support precise biopotential measurements, making it suitable for patient monitoring and diagnostic equipment.
IoT and Smart Home Sensors
The I2C interface simplifies integration with microcontrollers in smart home systems, enabling accurate environmental sensing for temperature, humidity, and light.
Multi-Channel Monitoring
The 2 or 4 channel multiplexer allows monitoring multiple sensors with a single ADC, reducing component count and system cost.
- Q: What type of ADC is the ADS1115IRUGR?
- A: The ADS1115IRUGR is a precision analog-to-digital converter featuring a MUX-PGA-ADC architecture with an internal reference.
- Q: What is the resolution of the ADS1115IRUGR?
- A: It offers 16-bit resolution for high-precision measurements.
- Q: What is the sampling rate of the ADS1115IRUGR?
- A: The maximum sampling rate is 860 SPS (samples per second).
- Q: How many input channels does the ADS1115IRUGR have?
- A: It supports 2 or 4 multiplexed input channels.
- Q: What interface does the ADS1115IRUGR use?
- A: It uses the I2C interface for communication.
- Q: What is the package type of the ADS1115IRUGR?
- A: It comes in a compact 10-XFQFN package.
