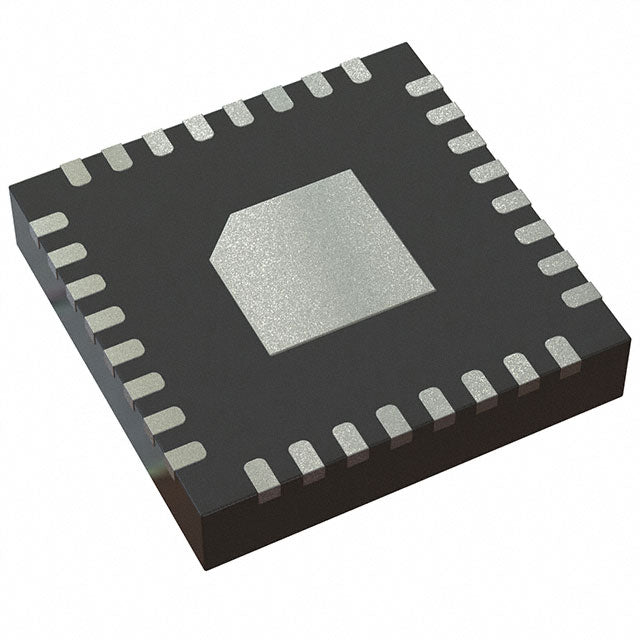

Texas Instruments ADS1204IRHBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.81 | $14.81 |
| 15+ | $14.34 | $215.10 |
| 25+ | $14.03 | $350.75 |
| 50+ | $13.25 | $662.50 |
| 100+ | $11.69 | $1,169.00 |
| N+ | $2.34 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Type | Modulator |
| Number of Channels | 4 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 40k |
| Data Interface | Parallel |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| ROHS |  |
ADS1204IRHBR - 4-Channel 16-Bit Delta-Sigma Modulator
The ADS1204IRHBR from Texas Instruments is a precision 4-channel delta-sigma modulator designed for high-performance data acquisition systems in industrial, automotive, medical, and telecommunications applications. This 16-bit modulator delivers exceptional accuracy with a 40kSPS sampling rate and operates across a wide voltage range of 2.7V to 5.5V.
Key Features & Benefits
- 4-Channel Design: Simultaneous multi-channel data acquisition for complex measurement systems
- 16-Bit Resolution: High-precision analog-to-digital conversion for demanding applications
- 40kSPS Sampling Rate: Fast data throughput for real-time monitoring and control
- Wide Operating Range: -40°C to 105°C temperature range ensures reliable performance in harsh environments
- Flexible Power Supply: 2.7V to 5.5V analog and digital supply compatibility
- Compact Surface Mount Package: 32-VQFN (5x5mm) with exposed pad for efficient thermal management
- RoHS Compliant: Meets environmental standards for global deployment
Applications
The ADS1204IRHBR is ideal for precision measurement systems including industrial process control, medical instrumentation, automotive sensor interfaces, test and measurement equipment, and multi-channel data acquisition systems requiring high accuracy and reliability.
Quality & Compliance
Manufactured by Texas Instruments with full traceability and long lifecycle availability. RoHS compliant for environmental responsibility. Backed by comprehensive technical documentation and design support.
Related Products & Resources
Explore our complete selection of ADCs/DACs - Special Purpose components for your design requirements. Browse all premium electronic components at HQICKEY or visit our technical blog for application notes, design guides, and industry insights.
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
