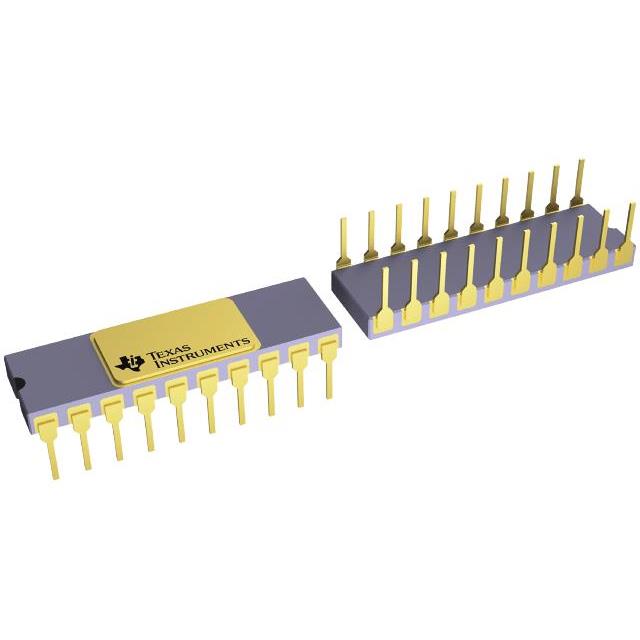

Texas Instruments ADS1243SKGD1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $133.29 | $133.29 |
| 15+ | $129.09 | $1,936.35 |
| 25+ | $126.28 | $3,157.00 |
| 50+ | $119.26 | $5,963.00 |
| 100+ | $105.23 | $10,523.00 |
| N+ | $21.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 15 |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | PGA |
| Operating Temperature | -55°C ~ 210°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | Die |
| Supplier Device Package | 0-XCEPT |
| ROHS |  |
The Texas Instruments ADS1243SKGD1 is a 24-bit, delta-sigma analog-to-digital converter designed for ultra-precise measurement applications. It features 8 multiplexed inputs and a built-in programmable gain amplifier (PGA), making it highly versatile for sensor interfacing. With an SPI interface and a remarkable temperature range up to 210°C, this die-form ADC is engineered for extreme environments and high-accuracy industrial systems.
- Ultra-High Resolution: 24-bit output provides exceptional precision for demanding measurement applications.
- Extreme Temperature Range: Operates from -55°C to 210°C, suitable for harsh industrial and downhole environments.
- Integrated PGA: Allows direct connection to low-level sensors like thermocouples and strain gauges without external amplification.
- 8-Channel Multiplexer: Enables monitoring of multiple sensors with a single ADC, reducing system cost and size.
High-Temperature Downhole Drilling
With a 210°C rating, this ADC is designed for geophysical and oil exploration equipment, converting sensor data in extreme downhole environments.
Precision Industrial Process Control
The 24-bit resolution and 8 channels allow for accurate monitoring of multiple pressure, temperature, and flow transmitters in industrial plants.
Weigh Scale and Load Cell Systems
Its high resolution and low noise performance make it ideal for precision weighing applications, ensuring accurate mass measurement.
Scientific Data Logging
For long-term environmental or structural monitoring, the low sampling rate and high accuracy are perfect for capturing slow-changing phenomena.
Medical Instrumentation
The integrated PGA and high resolution support precise biopotential measurements like ECG and EEG, where signal fidelity is paramount.
- Q: What is the resolution of the ADS1243SKGD1?
- A: This device is a 24-bit, high-precision analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 15 SPS, optimized for low-speed, high-accuracy measurements.
- Q: How many input channels does it have?
- A: It features 8 multiplexed input channels.
- Q: What interface does it use?
- A: It communicates via a standard SPI interface.
- Q: What is the architecture?
- A: It uses a MUX-PGA-ADC architecture with a built-in programmable gain amplifier.
- Q: What is the temperature range?
- A: It operates over an extreme temperature range of -55°C to 210°C.
