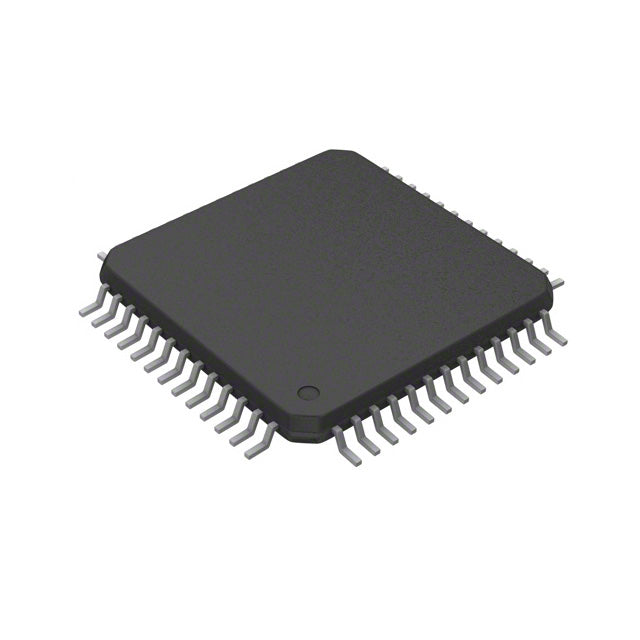

Texas Instruments ADS5423IPGP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $304.53 | $304.53 |
| 15+ | $70.04 | $1,050.60 |
| 25+ | $68.52 | $1,713.00 |
| 50+ | $64.71 | $3,235.50 |
| 100+ | $57.10 | $5,710.00 |
| N+ | $11.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tray |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 52-TQFP Exposed Pad |
| Supplier Device Package | 52-HTQFP (10x10) |
| ROHS |  |
The ADS5423IPGP from Texas Instruments is a high-performance 14-bit analog-to-digital converter with a sampling rate of 80 MSPS. It features a single input channel and a parallel interface, making it ideal for high-speed data acquisition and digital signal processing applications. The device includes an internal reference and operates over the industrial temperature range of -40°C to 85°C. Housed in a 52-pin TQFP package with an exposed pad, it ensures efficient heat dissipation for reliable operation in demanding environments such as wireless communications, medical imaging, and test equipment.
- High-Speed 80 MSPS Sampling: Enables digitization of fast-changing signals for real-time processing in communications and radar.
- 14-Bit Resolution: Provides fine amplitude resolution, improving signal-to-noise ratio for accurate measurements.
- Parallel Interface: Simplifies high-speed data transfer to DSPs and FPGAs without serialization delays.
- Internal Reference: Reduces external component count and simplifies board design.
- Exposed Pad Package: 52-TQFP with exposed pad enhances thermal performance, ensuring stability at high sampling rates.
High-Speed Data Acquisition Systems
The 14-bit resolution at 80 MSPS enables precise digitization of wideband signals in oscilloscopes and spectrum analyzers, capturing fine details in transient events.
Wireless Communication Base Stations
With its high sampling rate and parallel interface, this ADC is ideal for digital predistortion and IF sampling in 3G/4G base station receivers, improving signal fidelity.
Medical Ultrasound Imaging
The 14-bit dynamic range and 80 MSPS sampling rate support high-resolution ultrasound beamforming, enabling clearer imaging of soft tissue structures.
Radar and Lidar Systems
Fast sampling and single-channel architecture make it suitable for pulsed radar receivers, where high-speed digitization of return echoes is critical for target detection.
Industrial Video Digitization
The parallel output and high speed allow digitization of composite video signals for machine vision systems, enabling real-time inspection and quality control.
Test and Measurement Equipment
Its wide bandwidth and 14-bit accuracy make it a solid choice for arbitrary waveform generators and high-end multimeters requiring precise signal analysis.
- Q: What is the resolution of the ADS5423IPGP?
- A: It is a 14-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: The ADS5423IPGP supports a sampling rate of 80 MSPS (80M samples per second).
- Q: How many channels does it have?
- A: It has a single input channel (1 channel).
- Q: What interface does it use?
- A: It features a parallel interface for high-speed data transfer.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C, suitable for industrial environments.
- Q: What package is available?
- A: It comes in a 52-pin TQFP package with an exposed pad for improved thermal dissipation.
