Texas Instruments ADS5444IPFP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $431.52 | $431.52 |
| 15+ | $99.25 | $1,488.75 |
| 25+ | $97.09 | $2,427.25 |
| 50+ | $91.70 | $4,585.00 |
| 100+ | $80.91 | $8,091.00 |
| N+ | $16.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tray |
| Number of Bits | 13 |
| Sampling Rate (Per Second) | 250M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

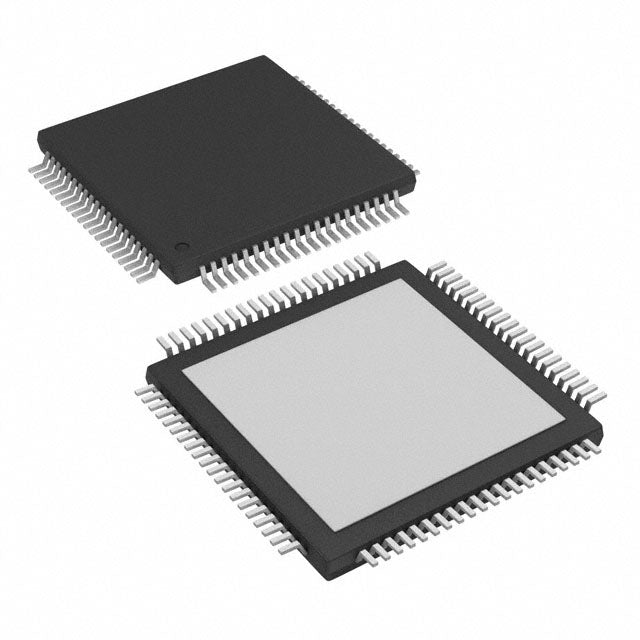

| Package / Case | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-HTQFP (12x12) |
| ROHS |  |
The Texas Instruments ADS5444IPFP is a high-speed 13-bit analog-to-digital converter engineered for ultra-fast signal processing. With a sampling rate of 250 MSPS and a single channel, it captures high-frequency signals with exceptional precision. The parallel interface ensures rapid data transfer to processing units. Its internal reference simplifies design, and the 80-pin TQFP package with exposed pad aids in thermal management. This ADC is perfect for advanced radar, wireless communications, and high-end test instrumentation where speed is paramount.
- Extreme Speed: 250 MSPS sampling rate is among the fastest, enabling capture of very high-frequency signals.
- High Resolution: 13-bit resolution provides excellent signal fidelity for demanding measurement applications.
- Internal Reference: Reduces external components, simplifying board design and improving reliability.
- Thermal Efficiency: The exposed pad package enhances heat dissipation, ensuring stable operation at high speeds.
Ultra-High-Speed Data Acquisition
The 250 MSPS sampling rate enables digitization of very fast transient signals in applications like particle physics experiments and high-speed digital oscilloscopes.
Advanced Radar Systems
For phased-array radar, the high speed and 13-bit resolution allow for precise target detection and improved range resolution in defense and weather monitoring systems.
Wireless Base Stations
In 5G and beyond, this ADC supports direct RF sampling, simplifying receiver architectures and enabling software-defined radio implementations.
Medical Imaging (PET Scanners)
The fast sampling rate is critical for positron emission tomography (PET) to accurately capture timing information from scintillation detectors.
High-Performance Test Equipment
Benefit from the 250 MSPS rate for characterizing high-frequency components, ensuring accurate measurement of bandwidth and distortion in R&D labs.
- Q: What is the resolution of the ADS5444IPFP?
- A: It is a 13-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: It supports a very high sampling rate of 250 MSPS.
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It is available in an 80-pin TQFP with exposed pad.
