Texas Instruments ADS5474IPFPR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,092.99 | $1,092.99 |
| 15+ | $251.39 | $3,770.85 |
| 25+ | $245.93 | $6,148.25 |
| 50+ | $232.26 | $11,613.00 |
| 100+ | $204.94 | $20,494.00 |
| N+ | $40.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 400M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3.1V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

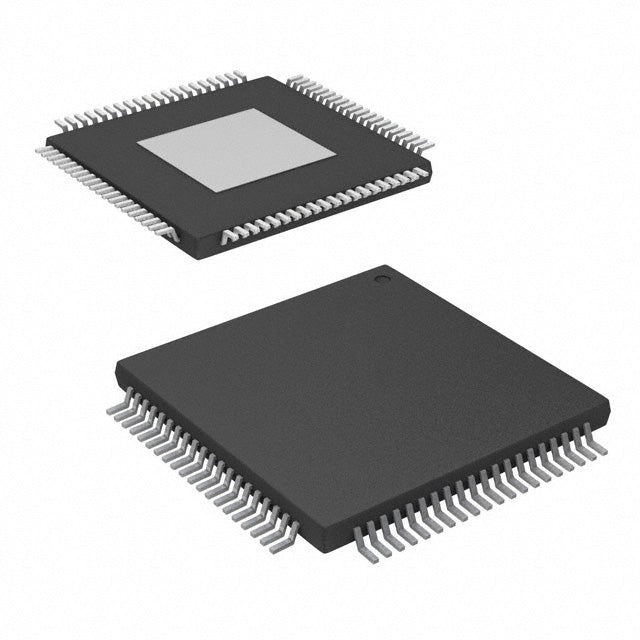

| Package / Case | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-HTQFP (12x12) |
| ROHS |  |
The ADS5474IPFPR is a high-speed, 14-bit analog-to-digital converter from Texas Instruments, offering a sampling rate of 400 MSPS. This single-channel ADC features a parallel interface and a sample-and-hold architecture, delivering excellent dynamic performance for a wide range of applications. Its high resolution and speed make it ideal for communications, radar, and medical imaging systems. The device operates over a -40°C to 85°C temperature range and is housed in an 80-TQFP Exposed Pad package.
- High Resolution: 14-bit resolution provides superior signal fidelity and dynamic range compared to lower-bit converters.
- Fast Sampling: 400 MSPS sampling rate captures high-frequency signals with excellent time resolution.
- Robust Design: Operates across a wide temperature range (-40°C to 85°C), ensuring reliability in harsh environments.
- Easy Integration: Parallel interface simplifies connection to digital signal processors and FPGAs.
High-Performance Data Acquisition
The combination of 14-bit resolution and 400 MSPS sampling rate makes this ADC perfect for high-performance data acquisition systems in scientific instrumentation, where both speed and precision are required.
Communications Systems
In 4G/5G base stations and microwave backhaul links, the ADS5474IPFPR's high dynamic range and fast sampling enable direct IF sampling, improving receiver sensitivity and reducing component count.
Radar and Electronic Warfare
The high sample rate and 14-bit resolution allow for precise detection and analysis of radar returns, making it suitable for defense and aerospace applications.
Medical Ultrasound
For high-end ultrasound systems, this ADC digitizes the returning echoes with high fidelity, enabling clearer images and more accurate diagnostic information.
Industrial Automation
In high-speed industrial inspection systems, the ADC's speed and resolution ensure accurate measurement of fast-moving parts, improving quality control processes.
- Q: What is the resolution of the ADS5474IPFPR?
- A: The ADS5474IPFPR is a 14-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 400 MSPS (mega-samples per second).
- Q: How many channels does this ADC have?
- A: It is a single-channel (1 channel) device.
- Q: What interface does it use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It is available in an 80-TQFP Exposed Pad package.
