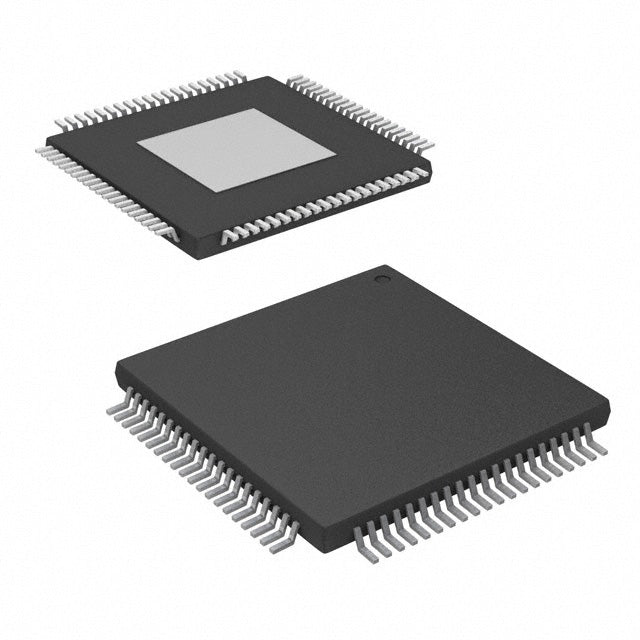

Texas Instruments ADS54RF63IPFPR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,092.88 | $1,092.88 |
| 15+ | $251.36 | $3,770.40 |
| 25+ | $245.90 | $6,147.50 |
| 50+ | $232.24 | $11,612.00 |
| 100+ | $204.92 | $20,492.00 |
| N+ | $40.98 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 550M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-HTQFP (12x12) |
| ROHS |  |
The ADS54RF63IPFPR from Texas Instruments is a high-performance 12-bit analog-to-digital converter designed for demanding high-speed signal processing applications. With a sampling rate of 550 MSPS and a single input channel, it delivers exceptional dynamic performance for digitizing wideband signals. Its parallel interface ensures straightforward integration with FPGAs and DSPs. This ADC is well-suited for applications including radar, wireless communications, and high-end test equipment, where high bandwidth and low latency are paramount.
- Ultra-High Sampling Rate: The 550 MSPS sampling rate enables direct digitization of high-frequency signals, reducing the need for multiple down-conversion stages.
- High Resolution: 12-bit resolution provides fine amplitude granularity, ensuring accurate representation of the input signal.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, making it suitable for industrial and automotive environments.
- Parallel Interface: Simplifies high-speed data transfer to processors and FPGAs without the need for complex serial decoders.
High-Speed Data Acquisition
The 550 MSPS sampling rate and 12-bit resolution make it ideal for high-speed data acquisition systems, including radar and lidar receivers, where fast and accurate signal digitization is critical.
Wireless Communications Infrastructure
In cellular base stations and software-defined radios, the ADS54RF63IPFPR's high bandwidth and parallel output interface enable direct RF sampling, simplifying receiver architectures and improving signal fidelity.
Test and Measurement Equipment
For oscilloscopes and spectrum analyzers, this ADC's high sample rate ensures that high-frequency transient signals are captured with excellent time-domain detail, while the 12-bit resolution provides good amplitude accuracy.
Medical Imaging Systems
In ultrasound and MRI systems, the high-speed conversion capability supports the digitization of fast analog signals from transducer arrays, enabling high-resolution imaging with rapid frame rates.
Military and Aerospace Electronics
With an operating temperature range of -40°C to 85°C, this ADC is suitable for defense applications such as electronic warfare and radar jamming systems, where reliable high-speed signal processing is essential.
- Q: What is the resolution of the ADS54RF63IPFPR?
- A: The ADS54RF63IPFPR is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It supports a high sampling rate of 550 MSPS (mega-samples per second).
- Q: How many channels does the ADS54RF63IPFPR have?
- A: It is a single-channel (1 channel) ADC.
- Q: What interface does this ADC use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture of the ADS54RF63IPFPR?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It comes in an 80-TQFP Exposed Pad package.
