Texas Instruments ADS5522IPAP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $141.97 | $141.97 |
| 15+ | $32.65 | $489.75 |
| 25+ | $31.94 | $798.50 |
| 50+ | $30.17 | $1,508.50 |
| 100+ | $26.62 | $2,662.00 |
| N+ | $5.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tray |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-PowerTQFP |
| Supplier Device Package | 64-HTQFP (10x10) |
| ROHS |  |

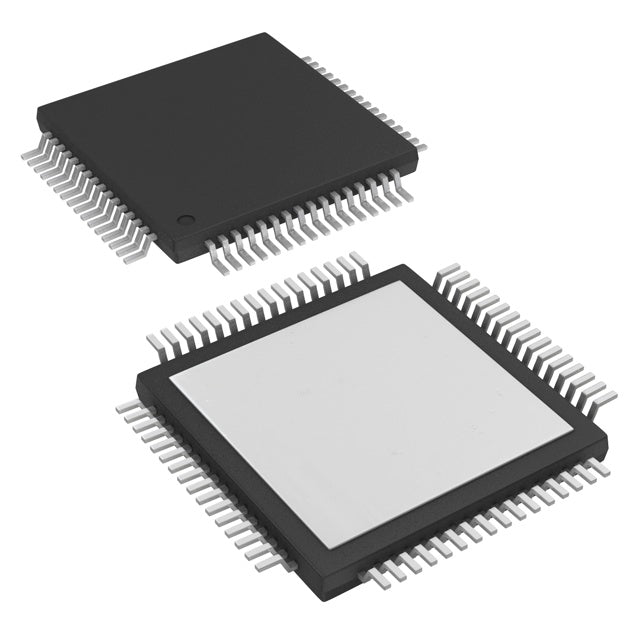

The ADS5522IPAP from Texas Instruments is a high-performance, 12-bit Analog-to-Digital Converter with a sampling rate of 80 MSPS. It features a single channel and a parallel interface, making it ideal for demanding applications that require high-speed data conversion. The device utilizes a Sample-and-Hold (S/H) architecture and includes an internal voltage reference. Housed in a 64-PowerTQFP package, it is designed to operate reliably in industrial environments with a temperature range of -40°C to 85°C.
- High-Speed Performance: The 80 MSPS sampling rate enables the digitization of fast-moving signals, making it suitable for advanced test and measurement and communication systems.
- Integrated Reference: The internal voltage reference simplifies the design and reduces external component count, saving board space and cost.
- Industrial Temperature Range: Rated for -40°C to 85°C, it is built to perform reliably in harsh industrial environments.
- Robust S/H Architecture: The Sample-and-Hold front-end ensures accurate sampling of high-frequency input signals, minimizing distortion.
High-Speed Data Acquisition
With a sampling rate of 80 MSPS and 12-bit resolution, the ADS5522IPAP is ideal for high-speed data acquisition systems, including radar, lidar, and high-performance digitizers.
Medical Imaging Equipment
The high-speed parallel output and S/H architecture make it suitable for medical imaging modalities like ultrasound and digital X-ray, where fast and accurate signal conversion is critical.
Wireless Communications
In base stations and software-defined radios, this ADC can digitize intermediate frequency (IF) signals, enabling digital down-conversion and advanced signal processing.
Test and Measurement Instruments
The wide bandwidth and high sampling rate are perfect for oscilloscopes, spectrum analyzers, and other test equipment that require capturing fast transient signals.
Industrial Automation
For high-speed industrial control loops and vibration monitoring, the ADS5522IPAP provides the necessary speed and precision to digitize dynamic signals in real-time.
- Q: What is the resolution of the ADS5522IPAP?
- A: The ADS5522IPAP is a 12-bit Analog-to-Digital Converter.
- Q: What is the sampling rate of this ADC?
- A: It has a high-speed sampling rate of 80 MSPS (Mega Samples Per Second).
- Q: How many channels does the ADS5522IPAP have?
- A: It features a single (1) input channel.
- Q: What interface does this ADC use?
- A: It uses a Parallel interface for data output.
- Q: What is the architecture of the ADS5522IPAP?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the operating temperature range?
- A: It operates over an industrial temperature range of -40°C to 85°C.
