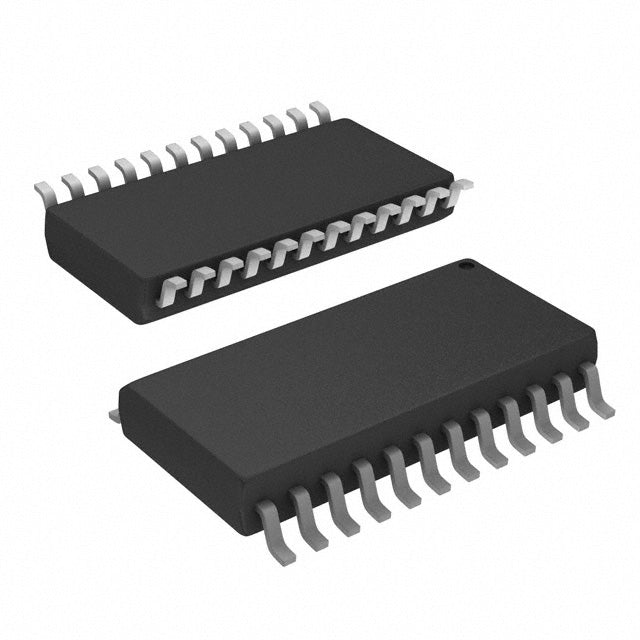

Texas Instruments ADS7800JU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $123.35 | $123.35 |
| 15+ | $119.45 | $1,791.75 |
| 25+ | $116.86 | $2,921.50 |
| 50+ | $110.36 | $5,518.00 |
| 100+ | $97.38 | $9,738.00 |
| N+ | $19.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 333k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V, -11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The ADS7800JU from Texas Instruments is a high-performance 12-bit analog-to-digital converter designed for demanding applications. It offers a fast sampling rate of 333k SPS and a single input channel, ensuring precise and rapid signal conversion. Featuring a parallel interface and an internal reference, this ADC simplifies system integration. Its S/H-ADC architecture guarantees accurate sample-and-hold operations, making it ideal for industrial control, data acquisition, and instrumentation systems.
- High-Speed Conversion: 333k SPS sampling rate enables real-time processing of fast-changing signals, ideal for dynamic measurement applications.
- Precise 12-Bit Resolution: Provides 4096 discrete levels, ensuring accurate digital representation of analog signals for reliable data analysis.
- Simplified Design: Integrated internal reference and parallel interface reduce external component count, simplifying circuit design and speeding up time-to-market.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, suitable for harsh industrial environments.
Industrial Sensor Digitization
The ADS7800JU's 12-bit resolution and 333k SPS sampling rate make it suitable for digitizing industrial sensors like temperature probes and pressure transducers, providing accurate digital readings for process control systems.
Data Acquisition Systems
With its parallel interface and internal reference, this ADC simplifies the design of data acquisition systems, enabling direct connection to microcontrollers or DSPs for high-speed data logging in test and measurement equipment.
Motor Control Feedback
In motor control applications, the ADS7800JU can digitize current and voltage feedback signals at high speed, allowing for precise and responsive control loops in industrial automation and robotics.
Portable Instrumentation
The device's operating temperature range of -40°C to 85°C and 12-bit accuracy make it a reliable choice for portable battery-powered instruments requiring low power consumption and dependable performance.
Audio Signal Processing
The 333k SPS sampling rate is sufficient for high-quality audio digitization, making the ADS7800JU a viable option for professional audio equipment and mixing consoles that require a parallel interface.
- Q: What is the resolution of the ADS7800JU ADC?
- A: The ADS7800JU is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of the ADS7800JU?
- A: It has a sampling rate of 333k SPS (samples per second).
- Q: How many input channels does the ADS7800JU have?
- A: It features a single (1) input channel.
- Q: What interface does the ADS7800JU use?
- A: It uses a Parallel interface for data output.
- Q: What is the architecture of the ADS7800JU?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type for the ADS7800JU?
- A: It comes in a 24-SOIC (0.295", 7.50mm Width) package.
