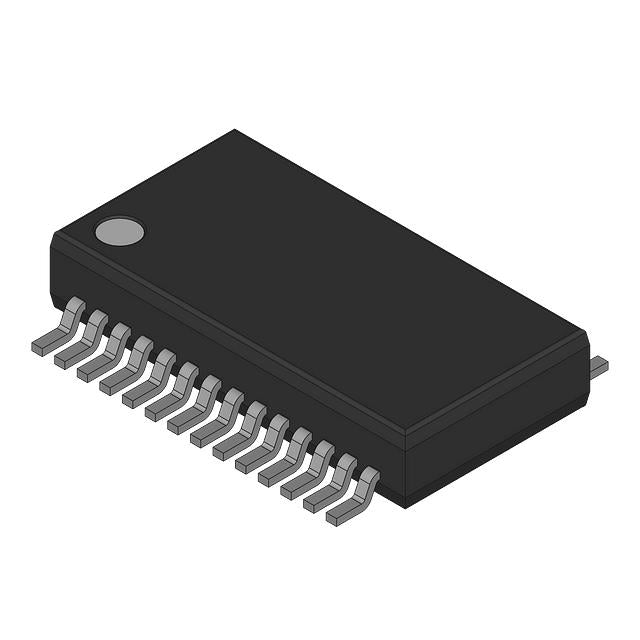

Burr Brown ADS804E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $85.76 | $85.76 |
| 15+ | $19.72 | $295.80 |
| 25+ | $19.30 | $482.50 |
| 50+ | $18.22 | $911.00 |
| 100+ | $16.08 | $1,608.00 |
| N+ | $3.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Burr Brown |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 10M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The ADS804E from Burr Brown is a high-performance 12-bit analog-to-digital converter designed for demanding applications requiring fast and accurate signal conversion. With a maximum sampling rate of 10 MSPS and a single input channel, this ADC delivers reliable performance for high-speed data acquisition. Its parallel interface ensures straightforward integration with digital systems, while the sample-and-hold architecture maintains signal integrity. Housed in a compact 28-pin SSOP package, the ADS804E operates over a wide temperature range, making it suitable for industrial, medical, and communication equipment.
- High-Speed Sampling: 10 MSPS sampling rate enables capture of fast-changing signals for real-time processing.
- 12-Bit Resolution: Provides fine granularity for accurate digital representation of analog inputs.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for harsh industrial environments.
- Parallel Interface: Simplifies connection to microcontrollers and DSPs for high-throughput data transfer.
- Flexible Reference Options: Supports both external and internal references for design flexibility.
High-Speed Data Acquisition Systems
The ADS804E's 10 MSPS sampling rate and 12-bit resolution make it ideal for high-speed data acquisition systems where precise digitization of fast analog signals is required.
Digital Oscilloscopes and Test Equipment
With its parallel interface and high-speed sampling, this ADC is well-suited for digital storage oscilloscopes and other test and measurement equipment that need to capture transient signals accurately.
Medical Imaging and Ultrasound
The combination of 12-bit resolution and 10 MSPS sampling enables the ADS804E to be used in medical imaging applications, such as ultrasound systems, where high-fidelity signal conversion is critical.
Industrial Automation and Control
In industrial automation, the ADS804E can digitize sensor signals in real-time for precise process control, benefiting from its wide operating temperature range of -40°C to 85°C.
Communication Systems
The high sampling rate and parallel output make this ADC suitable for intermediate frequency (IF) sampling in communication receivers, enabling digital processing of radio signals.
Radar and Sonar Systems
The ADS804E's speed and resolution are advantageous in radar and sonar signal processing, where rapid and accurate digitization of reflected pulses is essential.
- Q: What is the resolution of the ADS804E ADC?
- A: The ADS804E is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of the ADS804E?
- A: It supports a maximum sampling rate of 10 MSPS (10M samples per second).
- Q: How many input channels does the ADS804E have?
- A: It features a single input channel.
- Q: What interface does the ADS804E use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture of the ADS804E?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type of the ADS804E?
- A: It is available in a 28-pin SSOP package (0.209", 5.30mm width).
