Texas Instruments ADS8168IRHBT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.86 | $22.86 |
| 15+ | $22.14 | $332.10 |
| 25+ | $21.65 | $541.25 |
| 50+ | $20.45 | $1,022.50 |
| 100+ | $18.05 | $1,805.00 |
| N+ | $3.61 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | Internal Oscillator |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

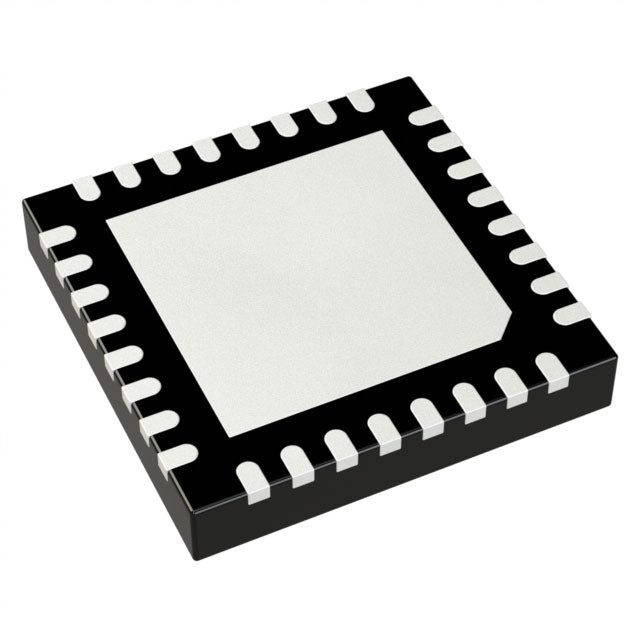

| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| ROHS |  |
The ADS8168IRHBT from Texas Instruments is a high-precision, 16-bit analog-to-digital converter (ADC) with a sampling rate of 1 MSPS. It features 8 input channels, making it ideal for multi-sensor data acquisition systems. The device uses a SPI interface for easy integration with microcontrollers and supports both external and internal references for design flexibility. Its MUX-S/H-ADC architecture ensures accurate sampling, and it operates over a wide -40°C to 125°C temperature range, suitable for industrial and automotive applications.
- High Precision: 16-bit resolution ensures accurate digitization of analog signals, critical for measurement and control systems.
- Multi-Channel Flexibility: 8 input channels reduce component count and simplify system design for multi-sensor applications.
- Wide Temperature Range: Operates from -40°C to 125°C, ensuring reliable performance in demanding industrial and automotive environments.
- Flexible Reference: Supports both external and internal references, providing design flexibility for various accuracy requirements.
Multi-Channel Data Acquisition Systems
The ADS8168IRHBT, with its 8 channels and 16-bit resolution, is perfect for multi-channel data acquisition systems, enabling simultaneous monitoring of multiple sensors with high accuracy.
Industrial Automation and Control
In industrial automation, this ADC can digitize signals from various sensors (temperature, pressure, flow) with high precision, supporting precise process control.
Medical Instrumentation
The high resolution and multi-channel capability make it suitable for medical instrumentation, such as patient monitoring systems, where accurate and reliable data conversion is critical.
Automotive Sensor Interfaces
Operating over a -40°C to 125°C temperature range, the ADS8168IRHBT is ideal for automotive sensor interfaces, ensuring reliable performance in harsh environments.
Power Monitoring and Control
It can be used in power monitoring systems to digitize voltage and current signals with high accuracy, enabling efficient energy management.
Portable Instrumentation
Its low power consumption and compact VFQFN package make it suitable for portable battery-powered instrumentation.
- Q: What is the ADS8168IRHBT?
- A: It is a 16-bit, 1 MSPS analog-to-digital converter (ADC) from Texas Instruments, featuring a MUX-S/H-ADC architecture.
- Q: What is the resolution of the ADS8168IRHBT?
- A: The resolution is 16 bits, providing high precision for accurate signal measurement.
- Q: What is the maximum sampling rate?
- A: The ADS8168IRHBT supports a maximum sampling rate of 1 MSPS (mega samples per second).
- Q: How many channels does it have?
- A: It has 8 input channels, making it suitable for multi-sensor data acquisition.
- Q: What interface does it use?
- A: It uses a standard SPI interface for easy communication with microcontrollers.
- Q: What is the package type?
- A: It comes in a 32-VFQFN Exposed Pad package.
