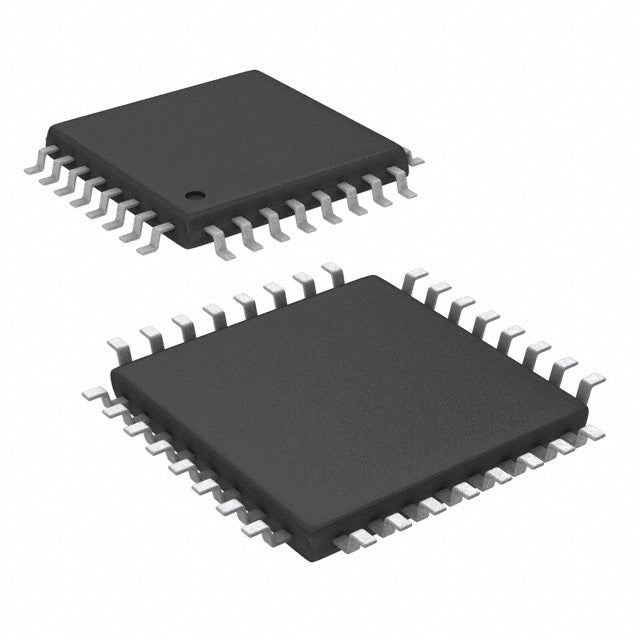

Texas Instruments ADS8322Y/250
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.60 | $21.60 |
| 15+ | $20.92 | $313.80 |
| 25+ | $20.47 | $511.75 |
| 50+ | $19.33 | $966.50 |
| 100+ | $17.06 | $1,706.00 |
| N+ | $3.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-TQFP |
| Supplier Device Package | 32-TQFP (5x5) |
| ROHS |  |
The ADS8322Y/250 is a 16-bit, 500k SPS analog-to-digital converter from Texas Instruments. It features a single input channel with a parallel interface and supports both external and internal references. Packaged in a 32-TQFP, this ADC is designed for high-precision, high-speed applications in medical imaging, industrial measurement, and scientific instrumentation.
- 16-Bit Precision: High resolution ensures accurate representation of analog signals, critical for demanding measurement applications.
- Fast Sampling Rate: 500k SPS enables capture of high-frequency signals without aliasing, suitable for real-time analysis.
- Flexible Reference: Support for external or internal references allows optimization for accuracy or simplicity.
- Parallel Interface: High-speed parallel output facilitates fast data transfer to DSPs or FPGAs.
High-Precision Data Acquisition
The ADS8322Y/250 with 16-bit resolution and 500k SPS sampling rate is ideal for high-precision data acquisition systems in scientific instrumentation and industrial test equipment.
Medical Imaging and Diagnostics
In medical devices like ultrasound or MRI systems, the 16-bit resolution and high speed enable accurate digitization of analog signals for image processing.
Vibration and Structural Analysis
The high sampling rate and resolution make the ADS8322Y/250 suitable for capturing vibration signals in structural health monitoring or machine condition monitoring.
Seismic and Geophysical Instruments
For geophysical surveys, the ADS8322Y/250 can digitize seismic signals with high fidelity, providing the precision needed for subsurface analysis.
High-End Audio and Acoustic Measurement
The 16-bit resolution and 500k SPS sampling rate allow for professional audio and acoustic measurements, capturing fine details in sound waveforms.
- Q: What is the ADS8322Y/250?
- A: The ADS8322Y/250 is a 16-bit analog-to-digital converter with a S/H-ADC architecture, supporting external or internal references.
- Q: What is the resolution of the ADS8322Y/250?
- A: The ADS8322Y/250 provides 16-bit resolution for high-precision measurements.
- Q: What is the sampling rate of the ADS8322Y/250?
- A: The ADS8322Y/250 supports a sampling rate of 500k SPS.
- Q: How many channels does the ADS8322Y/250 have?
- A: The ADS8322Y/250 has a single input channel.
- Q: What interface does the ADS8322Y/250 use?
- A: The ADS8322Y/250 uses a parallel interface.
- Q: What is the package of the ADS8322Y/250?
- A: The ADS8322Y/250 is available in a 32-TQFP package.
