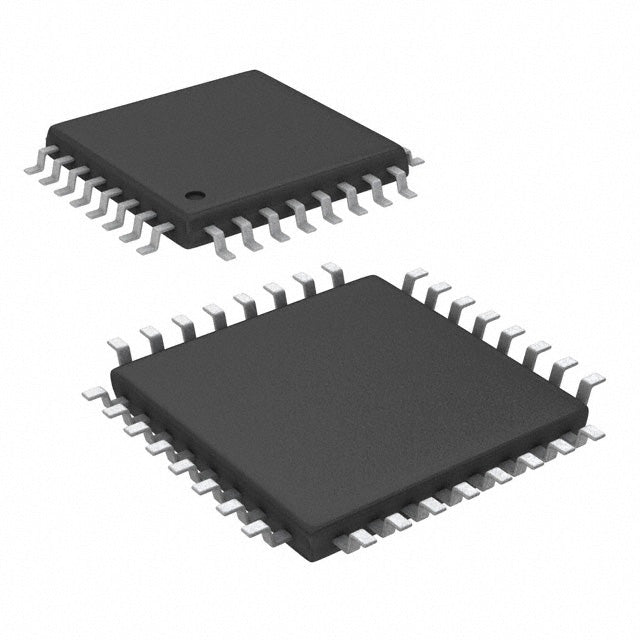

Texas Instruments ADS8322YB/250
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.42 | $22.42 |
| 15+ | $21.71 | $325.65 |
| 25+ | $21.24 | $531.00 |
| 50+ | $20.06 | $1,003.00 |
| 100+ | $17.70 | $1,770.00 |
| N+ | $3.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-TQFP |
| Supplier Device Package | 32-TQFP (5x5) |
| ROHS |  |
The ADS8322YB/250 is a 16-bit Analog-to-Digital Converter (ADC) from Texas Instruments, engineered for precision data acquisition. It offers a sampling rate of 500 kSPS and a single input channel, providing a balance of speed and accuracy. The parallel interface enables straightforward connection to digital systems for fast data transfer. With an S/H-ADC architecture and support for external or internal references, this converter is versatile for various applications. Housed in a 32-TQFP package, it operates over an industrial temperature range of -40°C to 85°C, making it suitable for industrial automation, medical devices, and test equipment.
- High Accuracy: 16-bit resolution delivers fine detail for precise measurement applications.
- Fast Parallel Interface: Enables quick data transfer to microcontrollers and DSPs for real-time processing.
- Flexible Reference Options: Supports both external and internal references for design flexibility.
- Industrial-Grade: -40°C to 85°C operating range ensures reliability in harsh environments.
Data Acquisition Systems
The ADS8322YB/250's 16-bit resolution and 500 kSPS sampling rate make it a solid choice for multi-channel data acquisition systems where high accuracy and moderate speed are required. The parallel interface simplifies high-throughput data reads.
Industrial Automation
In industrial settings, this ADC can digitize analog signals from sensors and transducers. Its wide temperature range and reliable parallel interface ensure robust operation in factory automation and process control.
Medical Instrumentation
For patient monitoring and diagnostic equipment, the 16-bit precision helps capture subtle physiological signals. The S/H architecture maintains signal integrity for accurate measurements.
Test and Measurement Equipment
The parallel output and 500kSPS speed are well-suited for precision instruments like digital multimeters and spectrum analyzers, where fast and accurate data conversion is essential.
Motor Control Systems
In servo drives and motor control, the ADC digitizes current and voltage feedback signals. The high resolution allows for precise control loops, improving efficiency and performance.
Audio Processing
With its high resolution, the ADS8322YB/250 can be used in professional audio equipment for digitizing analog audio signals with excellent dynamic range.
- Q: What is the resolution of the ADS8322YB/250?
- A: The ADS8322YB/250 is a 16-bit Analog-to-Digital Converter (ADC).
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 500 kSPS (500,000 samples per second).
- Q: How many channels does this ADC have?
- A: It features a single (1) input channel.
- Q: What interface does the ADS8322YB/250 use?
- A: It uses a Parallel interface for high-speed data transfer to microcontrollers or DSPs.
- Q: What is the architecture of this device?
- A: It utilizes a Sample-and-Hold (S/H-ADC) architecture.
- Q: What is the package type?
- A: It comes in a 32-TQFP package and operates from -40°C to 85°C.
