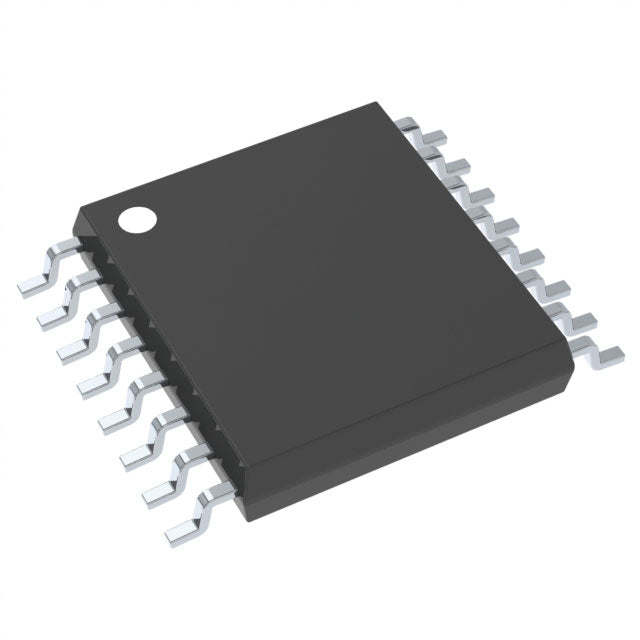

Texas Instruments ADS8328IBPW
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.10 | $14.10 |
| 15+ | $13.65 | $204.75 |
| 25+ | $13.36 | $334.00 |
| 50+ | $12.61 | $630.50 |
| 100+ | $11.13 | $1,113.00 |
| N+ | $2.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The ADS8328IBPW from Texas Instruments is a high-precision 16-bit analog-to-digital converter with a sampling rate of 500 kSPS. It features two input channels and a successive approximation architecture with an external reference for accurate voltage scaling. The SPI interface provides straightforward connectivity to microcontrollers and DSPs. Packaged in a 16-lead TSSOP, it operates over an industrial temperature range of -40°C to +85°C. This ADC is well-suited for precision industrial control, medical instrumentation, and automotive battery management applications.
- High Resolution: 16-bit output provides exceptional accuracy for demanding measurement applications.
- Dual-Channel Input: Two channels enable simultaneous sampling of related signals, reducing system complexity.
- Industrial Temperature Range: -40°C to +85°C ensures reliable operation in harsh environments.
- Standard SPI Interface: Easy integration with existing microcontroller ecosystems.
- External Reference: Allows precise calibration for application-specific voltage ranges.
High-Precision Industrial Control
The 16-bit resolution and 500 kSPS sampling rate enable precise monitoring of industrial process variables like pressure and flow with high dynamic range.
Medical Instrumentation
High resolution is critical for medical devices such as patient monitors and diagnostic equipment requiring accurate biopotential signal capture.
Automotive Battery Management
Dual-channel input allows simultaneous monitoring of battery voltage and current with high accuracy for state-of-charge estimation.
Data Acquisition Systems
The 2-channel configuration and SPI interface make it ideal for compact DAQ systems requiring synchronized sampling of two signals.
Weigh Scale and Load Cell
16-bit resolution provides the fine granularity needed for precise weight measurement in industrial and retail scales.
Environmental Monitoring
Accurate conversion of sensor signals (temperature, humidity, gas) supports reliable data logging in environmental stations.
- Q: What type of ADC is the ADS8328IBPW?
- A: The ADS8328IBPW is a 16-bit successive approximation ADC (S/H-ADC).
- Q: What is the resolution of the ADS8328IBPW?
- A: It offers 16-bit resolution.
- Q: What is the sampling rate of the ADS8328IBPW?
- A: The maximum sampling rate is 500 kSPS (500k samples per second).
- Q: How many channels does the ADS8328IBPW have?
- A: It has 2 input channels.
- Q: What interface does the ADS8328IBPW use?
- A: It uses an SPI serial interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to +85°C.
