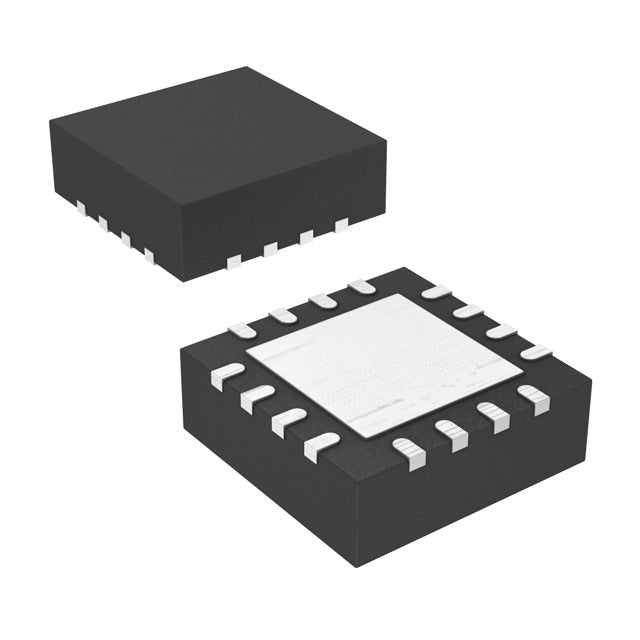

Texas Instruments ADS8329IBRSAT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.59 | $19.59 |
| 15+ | $18.97 | $284.55 |
| 25+ | $18.56 | $464.00 |
| 50+ | $17.53 | $876.50 |
| 100+ | $15.47 | $1,547.00 |
| N+ | $3.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| ROHS |  |
The Texas Instruments ADS8329IBRSAT is a high-performance 16-bit analog-to-digital converter (ADC) featuring a fast 1 MSPS sampling rate. This single-channel device utilizes a SAR architecture with a sample-and-hold circuit, ensuring accurate and reliable conversion of analog signals. It communicates via a standard SPI interface, simplifying integration with microcontrollers and DSPs. Housed in a compact 16-VQFN package with an exposed pad, it is designed for space-constrained applications. Typical uses include industrial automation, data acquisition, and medical instrumentation where precision and speed are paramount.
- High-Speed Precision: 16-bit resolution at 1 MSPS enables fast and accurate data capture, ideal for high-frequency signal analysis.
- Low Power Consumption: The SAR architecture is power-efficient, making it suitable for battery-powered and portable applications.
- Easy Integration: The standard SPI interface allows for simple connection to a wide range of microcontrollers and digital signal processors.
- Compact Footprint: The 16-VQFN package with exposed pad saves board space and improves thermal performance.
High-Speed Data Acquisition Systems
The 1 MSPS sampling rate and 16-bit resolution make the ADS8329IBRSAT ideal for high-speed data acquisition systems where precise voltage measurements are required at fast rates, such as in automated test equipment (ATE) and benchtop instruments.
Industrial Process Control
With its SAR architecture and SPI interface, this ADC can be easily integrated into industrial PLCs and process control loops to digitize sensor signals (e.g., pressure, flow) with high accuracy and low latency, ensuring real-time system response.
Medical Instrumentation
The 16-bit resolution provides the fine detail needed for medical devices like patient monitoring systems and diagnostic equipment, where accurate signal digitization is critical for reliable readings.
Portable Battery-Powered Devices
The low-power operation of the SAR architecture, combined with the compact 16-VQFN package, makes it suitable for portable data loggers and handheld measurement tools that require long battery life.
Precision Sensor Signal Conditioning
When paired with an external reference, the ADS8329IBRSAT can accurately digitize outputs from precision sensors like strain gauges and thermocouples, making it a strong choice for weigh scales and temperature measurement systems.
- Q: What is the resolution of the ADS8329IBRSAT?
- A: The ADS8329IBRSAT is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It supports a maximum sampling rate of 1 MSPS (1 million samples per second).
- Q: How many input channels does the ADS8329IBRSAT have?
- A: It has a single (1) input channel.
- Q: What digital interface does this ADC use?
- A: It uses a Serial Peripheral Interface (SPI) for communication.
- Q: What is the architecture of the ADS8329IBRSAT?
- A: It uses a Successive Approximation Register (SAR) architecture with a sample-and-hold (S/H) front end.
- Q: What is the package type?
- A: It is available in a 16-VQFN package with an exposed pad.
