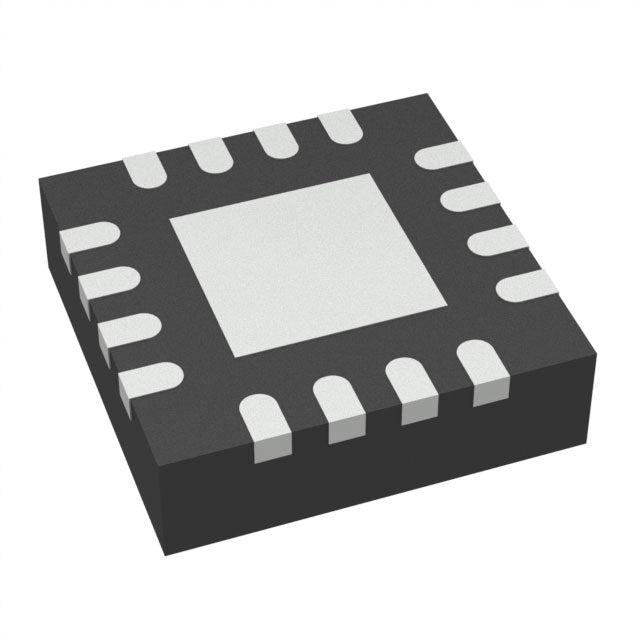

Texas Instruments ADS8350IRTET
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.63 | $18.63 |
| 15+ | $18.04 | $270.60 |
| 25+ | $17.65 | $441.25 |
| 50+ | $16.67 | $833.50 |
| 100+ | $14.71 | $1,471.00 |
| N+ | $2.94 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 4 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| ROHS |  |
The Texas Instruments ADS8350IRTET is a 16-bit, 4-channel, simultaneous sampling analog-to-digital converter (ADC). It features a sample-and-hold (S/H) architecture and communicates via an SPI interface. With a sampling rate of 100 kSPS, it is well-suited for applications requiring synchronized multi-channel data acquisition. The device is housed in a compact 16-WFQFN package and operates over a wide temperature range. Its key features make it an excellent choice for industrial automation, medical instrumentation, and multi-phase power monitoring systems.
- Simultaneous Sampling: 4 channels sample at the same instant, preserving critical phase information between signals, essential for accurate power and vibration analysis.
- High Resolution: 16-bit resolution ensures detailed and accurate representation of analog signals, minimizing quantization error.
- Compact and Robust: The 16-WFQFN package and -40°C to 85°C operating range make it suitable for space-constrained and harsh industrial environments.
- Simple Digital Interface: The SPI interface allows for easy connection to standard microcontrollers and DSPs, simplifying system design.
Multi-Channel Data Acquisition Systems
The ADS8350IRTET's 4 simultaneous sampling channels make it perfect for multi-channel data acquisition systems where phase alignment between channels is critical, such as in power quality analyzers and 3-phase motor control.
Industrial Automation and Control
In industrial automation, this ADC can monitor multiple sensors (e.g., current, voltage, temperature) simultaneously, enabling precise and synchronized control loops in PLCs and robotic systems.
Medical Instrumentation
For medical devices like ECG or EEG machines, the 4-channel simultaneous sampling capability of the ADS8350IRTET ensures accurate time-correlation of biological signals, which is essential for diagnosis.
Audio and Vibration Analysis
The 16-bit resolution and 100 kSPS rate are suitable for multi-channel audio capture and vibration analysis, providing high fidelity and phase coherence for beamforming or modal analysis.
Automotive Battery Management Systems
In electric vehicles, the ADS8350IRTET can simultaneously monitor cell voltages and temperatures in a battery pack, improving the accuracy and safety of the battery management system.
Smart Grid and Energy Monitoring
For smart grid applications, this ADC enables simultaneous sampling of voltage and current from multiple phases, facilitating accurate power calculation and harmonic analysis.
- Q: What is the ADS8350IRTET?
- A: It is a 16-bit, 4-channel, simultaneous sampling analog-to-digital converter (ADC) from Texas Instruments.
- Q: What is the resolution of the ADS8350IRTET?
- A: The ADS8350IRTET provides a high 16-bit resolution for precise signal measurement.
- Q: What is the sampling rate of the ADS8350IRTET?
- A: It supports a sampling rate of 100 kSPS (kilo samples per second).
- Q: How many channels does the ADS8350IRTET have?
- A: It has 4 input channels, allowing for simultaneous sampling of multiple signals.
- Q: What interface does the ADS8350IRTET use?
- A: It uses a standard SPI (Serial Peripheral Interface) for digital communication.
- Q: What is the package type for the ADS8350IRTET?
- A: It comes in a 16-WFQFN exposed pad package and operates from -40°C to 85°C.
