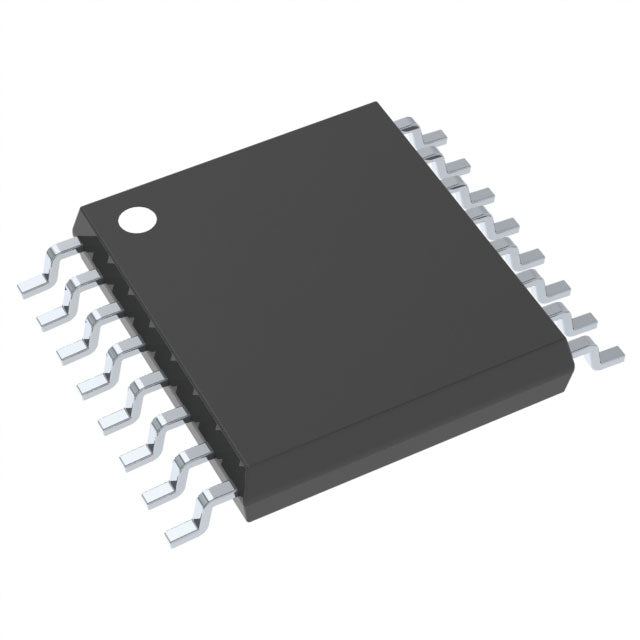

Texas Instruments ADS8353IPWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.82 | $17.82 |
| 15+ | $17.26 | $258.90 |
| 25+ | $16.88 | $422.00 |
| 50+ | $15.95 | $797.50 |
| 100+ | $14.07 | $1,407.00 |
| N+ | $2.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 600k |
| Number of Inputs | 2 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The ADS8353IPWR is a 16-bit, dual-channel ADC from Texas Instruments with a sampling rate of 600k SPS. It features a S/H-ADC architecture and communicates via SPI. The device supports both external and internal references, providing design flexibility. It operates over an extended temperature range of -40°C to 125°C and is housed in a 16-TSSOP package. This ADC is ideal for high-speed data acquisition, portable medical devices, and industrial automation where performance and reliability are paramount.
- High Sampling Rate: 600k SPS enables accurate digitization of fast-changing signals.
- Dual Channels: Two synchronized channels support stereo or differential measurements.
- Extended Temperature: -40°C to 125°C operation suits automotive and industrial applications.
- Flexible Reference: Internal or external reference options simplify circuit design.
- Compact TSSOP: Small footprint saves PCB space in portable devices.
High-Speed Data Acquisition
The 600k SPS sampling rate allows capture of high-frequency signals in vibration analysis and acoustic testing.
Portable Medical Devices
Dual channels and SPI interface make it suitable for compact ultrasound probes and portable ECG monitors.
Industrial Automation
With a wide temperature range up to 125°C, it can be used in harsh environments like engine control units.
Test and Measurement
The high speed and 16-bit resolution enable accurate waveform digitization in oscilloscopes and spectrum analyzers.
Communication Systems
Dual-channel capability supports I/Q demodulation in software-defined radio receivers.
- Q: What is the ADS8353IPWR?
- A: It is a 16-bit, dual-channel analog-to-digital converter from Texas Instruments.
- Q: What is the resolution?
- A: The resolution is 16 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 600k SPS.
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interface does it use?
- A: It uses a serial SPI interface.
- Q: What is the package type?
- A: It is available in a 16-TSSOP package.
