Texas Instruments ADS8353IRTER
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.82 | $17.82 |
| 15+ | $17.26 | $258.90 |
| 25+ | $16.88 | $422.00 |
| 50+ | $15.95 | $797.50 |
| 100+ | $14.07 | $1,407.00 |
| N+ | $2.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 600k |
| Number of Inputs | 2 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

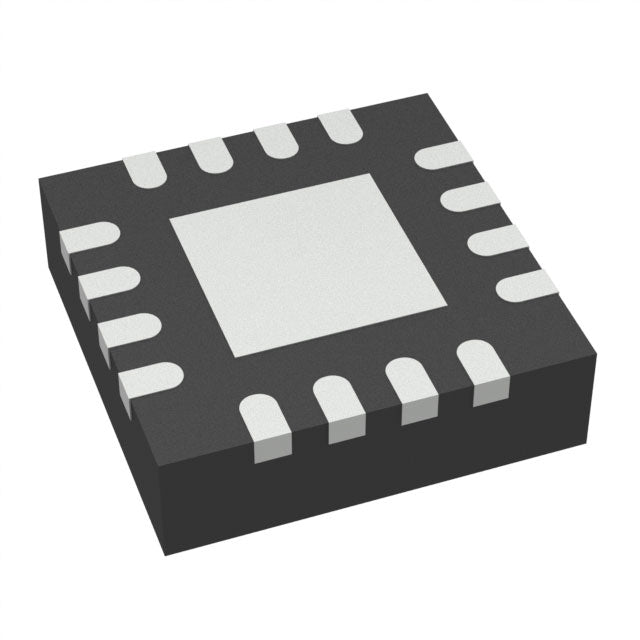

| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| ROHS |  |
The ADS8353IRTER from Texas Instruments is a high-speed, dual-channel, 16-bit analog-to-digital converter (ADC) designed for demanding applications. It achieves a maximum sampling rate of 600k SPS, enabling precise digitization of fast-changing signals. The device features two simultaneous-sampling inputs, making it ideal for applications requiring phase-correlated measurements, such as motor control and power monitoring. It communicates via a standard SPI interface, ensuring easy integration with microcontrollers and DSPs. Housed in a compact 16-WFQFN package, the ADS8353IRTER operates over a wide temperature range of -40°C to +125°C, making it suitable for industrial and automotive environments.
- High-Speed Precision: 600k SPS sampling rate combined with 16-bit resolution delivers accurate digitization of fast signals.
- Simultaneous Sampling: Dual channels capture two signals at the exact same instant, preserving critical phase relationships.
- Robust for Harsh Environments: Operates reliably from -40°C to +125°C, suitable for automotive and industrial applications.
- Compact Footprint: The 16-WFQFN package saves valuable PCB space in dense designs.
High-Speed Data Acquisition Systems
The ADS8353IRTER's 600k SPS sampling rate and 16-bit resolution make it ideal for high-speed data acquisition in applications like vibration analysis and transient recording. Its dual channels enable simultaneous sampling of two related signals, preserving phase information.
Motor Control and Power Inverters
In industrial motor drives, the ADC can monitor phase currents and voltages with high precision. The fast sampling rate allows for real-time control loops, while the 16-bit resolution ensures accurate current sensing for torque and speed control.
Medical Imaging and Instrumentation
For applications like ultrasound or optical coherence tomography (OCT), the high speed and resolution of the ADS8353IRTER are critical. It can digitize high-frequency analog signals with excellent fidelity, enabling clearer images and more accurate diagnostics.
Automotive Battery Management
The wide temperature range (-40°C to 125°C) makes it suitable for automotive battery management systems. It can precisely measure cell voltages and temperatures, ensuring safe and efficient battery operation in electric vehicles.
Industrial Process Control
In closed-loop process control, the ADC's precision and speed allow for accurate monitoring of pressure, flow, and level transmitters. The SPI interface ensures reliable data transfer to a central controller in noisy industrial environments.
Test and Measurement Equipment
The ADS8353IRTER is well-suited for benchtop instruments like digital multimeters and data loggers. Its high resolution and sampling rate provide the accuracy and speed needed for general-purpose test and measurement tasks.
- Q: What is the ADS8353IRTER?
- A: It is a dual-channel, 16-bit, 600k SPS analog-to-digital converter (ADC) from Texas Instruments.
- Q: What is the resolution of the ADS8353IRTER?
- A: The ADS8353IRTER offers 16-bit resolution, providing 65,536 discrete levels for high-precision measurements.
- Q: What is the sampling rate of the ADS8353IRTER?
- A: It supports a maximum sampling rate of 600k samples per second (SPS).
- Q: How many channels does the ADS8353IRTER have?
- A: It has 2 input channels, allowing simultaneous sampling of two signals.
- Q: What interface does the ADS8353IRTER use?
- A: It features a high-speed SPI (Serial Peripheral Interface) for digital communication.
- Q: What is the package type for the ADS8353IRTER?
- A: It comes in a 16-WFQFN Exposed Pad package, suitable for space-constrained designs.
