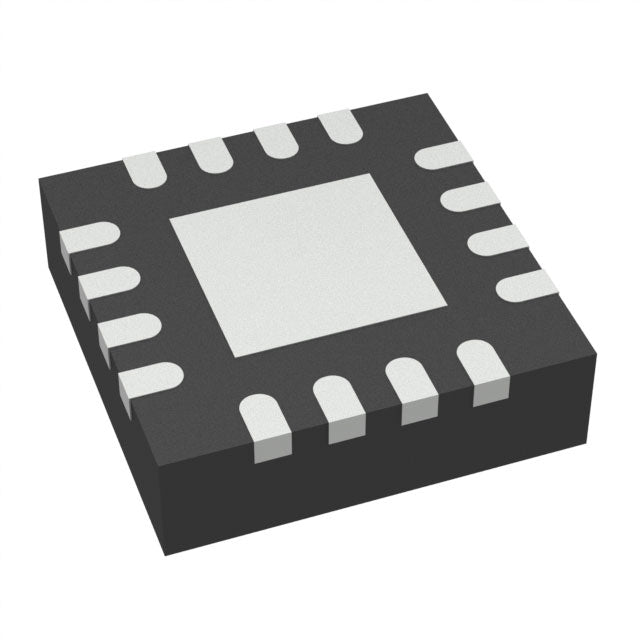

Texas Instruments ADS8353IRTET
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.05 | $21.05 |
| 15+ | $20.39 | $305.85 |
| 25+ | $19.94 | $498.50 |
| 50+ | $18.84 | $942.00 |
| 100+ | $16.62 | $1,662.00 |
| N+ | $3.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 600k |
| Number of Inputs | 2 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| ROHS |  |
The ADS8353IRTET is a 16-bit, 600 kSPS dual-channel analog-to-digital converter from Texas Instruments. Featuring an SPI interface and S/H architecture, it enables simultaneous sampling of two signals with high precision. With external or internal reference options and an extended temperature range up to 125°C, this ADC is ideal for automotive, industrial, and medical applications.
- Simultaneous Sampling: Dual S/H channels capture two signals at the exact same instant, essential for phase-accurate measurements.
- High Resolution: 16-bit accuracy ensures detailed signal representation.
- Extended Temperature Range: -40°C to 125°C supports automotive and harsh industrial environments.
- Flexible References: External or internal reference options provide design versatility.
- Compact Package: 16-WFQFN package is ideal for space-constrained designs.
Simultaneous Sampling Systems
Dual channels with S/H architecture allow simultaneous sampling of two signals, critical for power monitoring and motor control.
Industrial Motor Drives
600 kSPS and 16-bit resolution enable precise current/voltage sensing in variable frequency drives for smooth motor operation.
Medical Ultrasound
High resolution and dual channels support accurate beamforming in portable ultrasound devices.
Automotive Battery Management
Wide temperature range (-40°C to 125°C) makes it suitable for monitoring cell voltages in electric vehicle battery packs.
Vibration Analysis
Simultaneous acquisition of two accelerometer signals helps in structural health monitoring and predictive maintenance.
Power Quality Analyzers
Dual-channel simultaneous sampling of voltage and current enables accurate calculation of power factor and harmonics.
- Q: What is the resolution of the ADS8353IRTET?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 600 kSPS (600k samples per second).
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What package is available?
- A: It comes in a 16-WFQFN Exposed Pad package.
