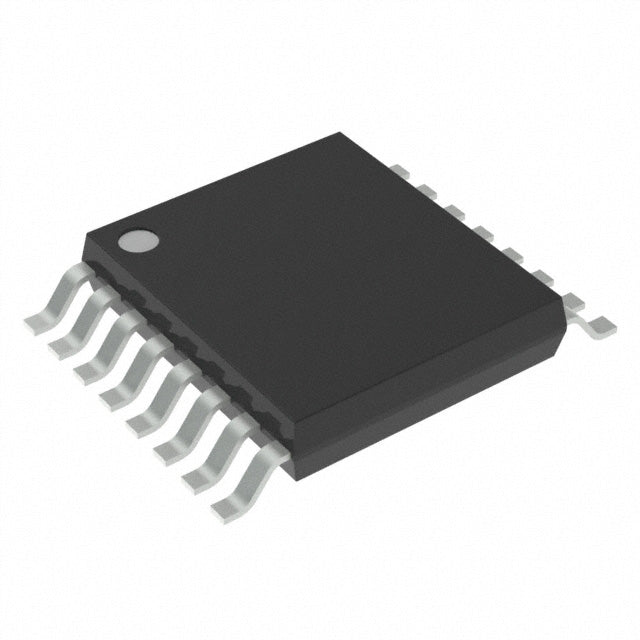

Texas Instruments ADS8353QPWRQ1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.73 | $20.73 |
| 15+ | $20.07 | $301.05 |
| 25+ | $19.64 | $491.00 |
| 50+ | $18.55 | $927.50 |
| 100+ | $16.37 | $1,637.00 |
| N+ | $3.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 600k |
| Number of Inputs | 2 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | Serial |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The ADS8353QPWRQ1 is a 16-bit, dual-channel analog-to-digital converter from Texas Instruments, specifically qualified for automotive applications. It features a maximum sampling rate of 600k SPS and a serial interface for high-speed data transfer. With an internal voltage reference and a wide operating temperature range of -40°C to 125°C, this ADC is designed for reliable performance in harsh environments. Its compact 16-TSSOP package makes it suitable for space-constrained automotive and industrial designs.
- Automotive Qualified: AEC-Q100 qualified for reliable operation in automotive environments.
- High-Speed Sampling: 600k SPS enables real-time control and monitoring applications.
- Dual-Channel Simultaneous Sampling: Perfect for applications requiring synchronized measurement of two signals, like motor phase currents.
- Internal Reference: Reduces external component count and simplifies design.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for under-hood automotive use.
Automotive Battery Management
The ADS8353QPWRQ1's 600k SPS sampling rate and 16-bit resolution enable accurate monitoring of battery voltage and current in electric and hybrid vehicles.
Motor Control Systems
Dual-channel simultaneous sampling is ideal for phase current and voltage measurement in motor drives, improving control loop performance.
Automotive Sensor Interfaces
With a wide temperature range (-40°C to 125°C), this ADC is suitable for interfacing with various automotive sensors like pressure and position sensors.
Power Inverter Monitoring
High-speed conversion allows for real-time monitoring of power inverter outputs, ensuring efficient and safe operation in automotive power trains.
Industrial Automation
Beyond automotive, its speed and resolution make it useful for industrial automation requiring fast, precise analog signal digitization.
Data Acquisition Systems
The serial interface and compact package make it easy to integrate into high-speed data acquisition systems for test and measurement.
- Q: What type of ADC is the ADS8353QPWRQ1?
- A: The ADS8353QPWRQ1 is a 16-bit, dual-channel analog-to-digital converter from Texas Instruments, designed for automotive applications.
- Q: What is the resolution of the ADS8353QPWRQ1?
- A: It offers 16-bit resolution, providing good accuracy for automotive sensor and control systems.
- Q: What is the sampling rate of the ADS8353QPWRQ1?
- A: The maximum sampling rate is 600k SPS, enabling high-speed data acquisition for real-time control.
- Q: How many channels does the ADS8353QPWRQ1 have?
- A: It has 2 input channels, making it suitable for applications requiring simultaneous sampling of two signals.
- Q: What interface does the ADS8353QPWRQ1 use?
- A: It uses a serial interface for communication, compatible with standard SPI protocols.
- Q: What is the package for the ADS8353QPWRQ1?
- A: It comes in a 16-TSSOP package with a 4.40mm width, designed for automotive-grade reliability.
