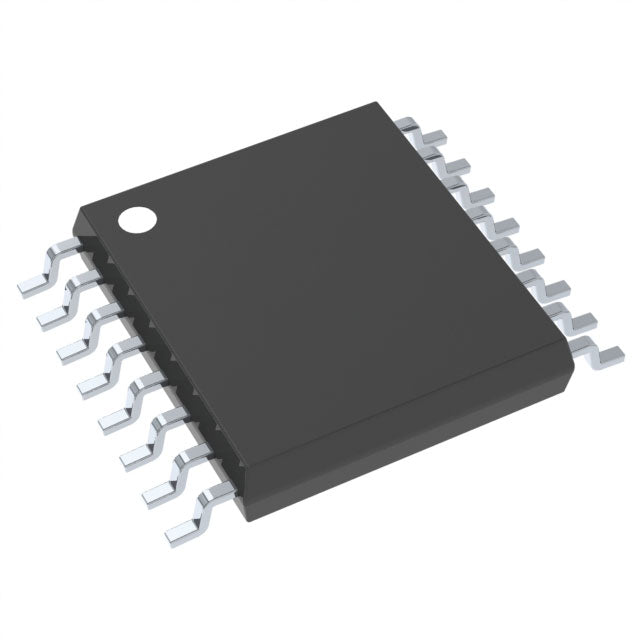

Texas Instruments ADS8354IPWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.84 | $18.84 |
| 15+ | $18.24 | $273.60 |
| 25+ | $17.85 | $446.25 |
| 50+ | $16.86 | $843.00 |
| 100+ | $14.87 | $1,487.00 |
| N+ | $2.97 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 700k |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The ADS8354IPWR from Texas Instruments is a high-precision 16-bit analog-to-digital converter designed for demanding applications. It offers a fast sampling rate of 700k SPS and features 2 simultaneous-sampling input channels. The SPI interface ensures easy and efficient communication with microcontrollers and DSPs. With an operating temperature range of -40°C to 125°C, it is robust enough for industrial and automotive environments. The compact 16-TSSOP package makes it suitable for space-constrained designs.
- High Resolution: 16-bit resolution provides exceptional detail and accuracy for precise measurements.
- Fast Sampling: 700k SPS sampling rate enables capture of high-frequency signals without aliasing.
- SPI Interface: Simple, high-speed serial interface reduces pin count and simplifies PCB layout.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for harsh environments.
High-Precision Industrial Sensing
The 16-bit resolution and 700k SPS sampling rate make it ideal for high-accuracy industrial sensors, such as pressure transducers and precision temperature probes, ensuring detailed signal capture.
Motor Control with High Resolution
In advanced motor control systems, the dual channels can simultaneously sample current and voltage with high precision, enabling sophisticated control algorithms for smoother and more efficient operation.
Portable Medical Devices
The SPI interface and low power consumption make it suitable for battery-powered medical devices like digital stethoscopes or portable ECG monitors, where high-resolution data is critical.
Data Acquisition Cards
The high speed and resolution make it a strong candidate for multi-channel data acquisition cards used in test and measurement, providing accurate digitization of analog signals.
Audio Processing
With its high resolution and sampling rate, it can be used in professional audio equipment for digitizing analog audio signals with excellent fidelity.
Automotive Sensor Monitoring
Operating from -40°C to 125°C, it is suitable for automotive environments, monitoring sensors like throttle position or battery voltage with high accuracy.
- Q: What is the resolution of the ADS8354IPWR?
- A: The ADS8354IPWR is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It features a maximum sampling rate of 700k SPS.
- Q: How many input channels does it have?
- A: This ADC has 2 input channels.
- Q: What interface does it use?
- A: It uses an SPI interface for data communication.
- Q: What is the architecture of this ADC?
- A: It uses a S/H-ADC architecture.
- Q: What is the package type?
- A: The ADS8354IPWR is available in a 16-TSSOP package.
