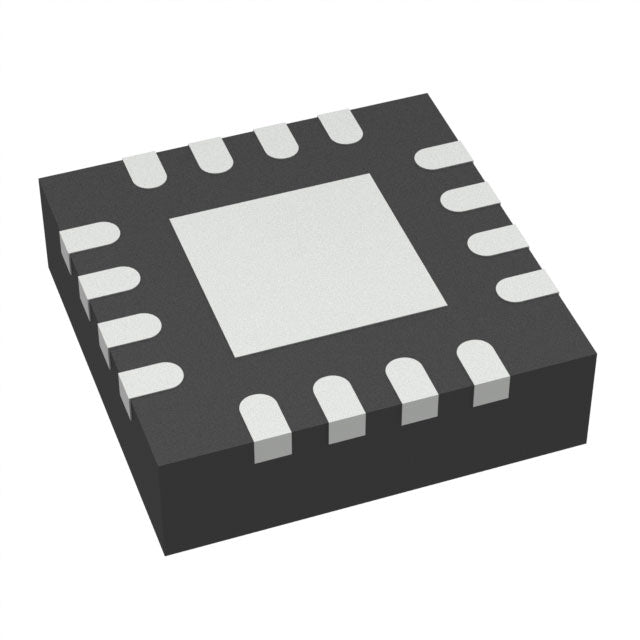

Texas Instruments ADS8355IRTET
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $31.36 | $31.36 |
| 15+ | $30.37 | $455.55 |
| 25+ | $29.71 | $742.75 |
| 50+ | $28.06 | $1,403.00 |
| 100+ | $24.76 | $2,476.00 |
| N+ | $4.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 2 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| ROHS |  |
The ADS8355IRTET from Texas Instruments is a high-speed, dual-channel 16-bit analog-to-digital converter. With a sampling rate of 1 MSPS, it offers fast and accurate conversion for multi-channel applications. The SPI interface ensures simple connectivity to microcontrollers and DSPs. Its wide operating temperature range of -40°C to 125°C makes it suitable for industrial and automotive environments. Packaged in a compact 16-WFQFN with exposed pad, it is designed for space-efficient and thermally robust designs.
- Dual-Channel Simultaneous Sampling: Two channels allow for synchronized measurement of multiple signals.
- High-Speed Performance: 1 MSPS sampling rate supports real-time control and monitoring.
- Wide Temperature Range: -40°C to 125°C operation for automotive and industrial use.
- Compact Package: 16-WFQFN with exposed pad for efficient thermal management.
Dual-Channel Data Acquisition
The 2-channel configuration and 1 MSPS sampling rate make it ideal for simultaneous sampling of two signals in motor control or power monitoring systems.
Industrial Automation
In PLCs and industrial sensors, the 16-bit resolution and SPI interface allow for precise, isolated data collection in noisy factory environments.
Automotive Systems
With a -40°C to 125°C range, it is suitable for automotive battery management systems and motor drives, ensuring reliable operation under hood.
Medical Devices
The high resolution and dual channels are useful in portable medical devices for monitoring multiple physiological signals simultaneously.
Smart Grid Infrastructure
For grid monitoring equipment, the ADS8355 can accurately digitize voltage and current from multiple phases for power quality analysis.
Test and Measurement
The SPI interface and high speed make it easy to integrate into multi-channel data loggers and benchtop instruments.
- Q: What is the resolution of the ADS8355IRTET?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 1 MSPS (1M samples per second).
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interface does it use?
- A: It uses a serial SPI interface.
- Q: What is the architecture?
- A: It uses a standard ADC architecture.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C.
