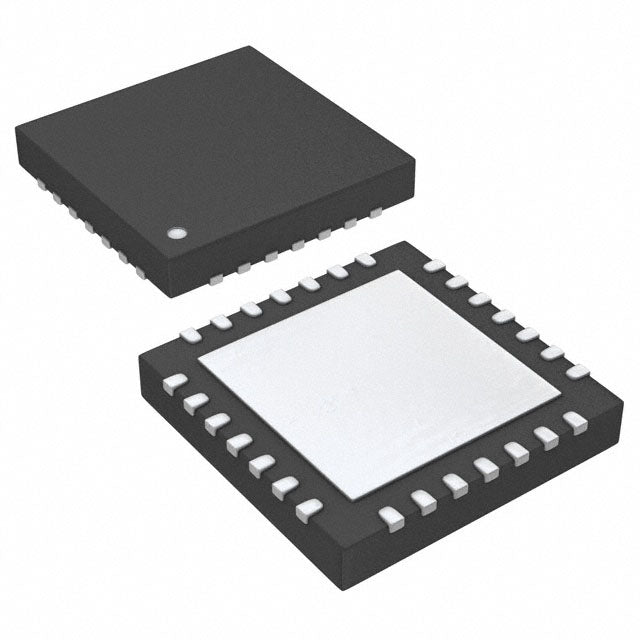

Texas Instruments ADS8370IRHPT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.98 | $21.98 |
| 15+ | $21.29 | $319.35 |
| 25+ | $20.83 | $520.75 |
| 50+ | $19.67 | $983.50 |
| 100+ | $17.36 | $1,736.00 |
| N+ | $3.47 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 600k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-VQFN Exposed Pad |
| Supplier Device Package | 28-QFN (6x6) |
| ROHS |  |
The ADS8370IRHPT is a 16-bit analog-to-digital converter with a sampling rate of 600k SPS. It features a single input channel and a successive approximation (S/H-ADC) architecture. The device supports both external and internal reference options and communicates via an SPI interface. Housed in a 28-VQFN exposed pad package, it operates over a temperature range of -40°C to 85°C, making it suitable for a wide range of industrial and automotive applications.
- High Precision: 16-bit resolution provides excellent accuracy for critical measurements.
- Fast Sampling: 600k SPS enables high-speed data acquisition without sacrificing resolution.
- Flexible Reference: Internal or external reference options simplify design.
- Compact QFN Package: The 28-VQFN package is ideal for space-constrained designs.
Precision Industrial Measurement
The 16-bit resolution and 600k SPS sampling rate make it ideal for precision industrial measurement and control systems.
Medical Instrumentation
In medical devices, the high accuracy and SPI interface enable reliable data acquisition for patient monitoring and diagnostic equipment.
Automotive Electronics
The wide temperature range and robust design make it suitable for automotive sensor interfaces and battery management systems.
Scientific Instruments
It is well-suited for spectrometers, chromatographs, and other scientific instruments requiring high-resolution data conversion.
Energy Management
The ADC can be used in smart grid and energy metering applications for accurate voltage and current monitoring.
- Q: What is the ADS8370IRHPT?
- A: It is a 16-bit, 600k SPS analog-to-digital converter with a successive approximation architecture.
- Q: What is the resolution?
- A: The resolution is 16 bits, providing high precision.
- Q: What is the sampling rate?
- A: The sampling rate is 600k SPS.
- Q: What interface does it use?
- A: It uses an SPI serial interface.
- Q: Does it have an internal reference?
- A: Yes, it supports both external and internal reference options.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C and is available in a 28-VQFN package.
