Texas Instruments ADS8380IBRHPT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $57.10 | $57.10 |
| 15+ | $55.29 | $829.35 |
| 25+ | $54.09 | $1,352.25 |
| 50+ | $51.09 | $2,554.50 |
| 100+ | $45.08 | $4,508.00 |
| N+ | $9.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 600k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

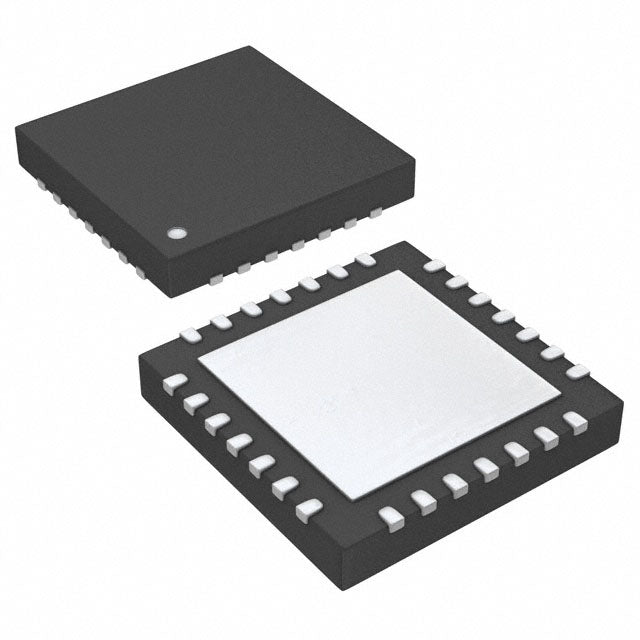

| Package / Case | 28-VQFN Exposed Pad |
| Supplier Device Package | 28-QFN (6x6) |
| ROHS |  |
The ADS8380IBRHPT from Texas Instruments is an 18-bit, 600 kSPS analog-to-digital converter with a successive approximation architecture. It features a single channel and a serial SPI interface, making it easy to integrate with microcontrollers. This ADC is designed for high-precision applications such as medical instrumentation, industrial process control, and scientific data acquisition.
- Exceptional Resolution: 18-bit output offers superior accuracy for demanding measurements.
- High Speed: 600 kSPS sampling rate enables fast data capture without sacrificing precision.
- Simple SPI Interface: Reduces pin count and simplifies board layout.
- Compact Package: 28-VQFN package is space-efficient for modern designs.
High-Precision Data Acquisition
The ADS8380IBRHPT's 18-bit resolution and 600 kSPS sampling rate make it ideal for high-precision data acquisition systems in industrial and scientific applications.
Medical Instrumentation
In medical devices such as EEG and ECG machines, the high resolution ensures accurate capture of small biopotential signals.
Weighing and Force Measurement
The high resolution is perfect for precision weighing scales and force sensors, where even minute changes must be detected.
Seismic Monitoring
For geophysical instruments, the combination of high resolution and speed allows for detailed analysis of seismic waves.
Automotive Test Systems
In automotive testing, this ADC can digitize sensor data with high accuracy for engine control and safety systems validation.
- Q: What is the ADS8380IBRHPT?
- A: It is an 18-bit, 600 kSPS analog-to-digital converter from Texas Instruments.
- Q: What is the resolution?
- A: The resolution is 18 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 600 kSPS.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What is the package type?
- A: It is available in a 28-VQFN Exposed Pad package.
