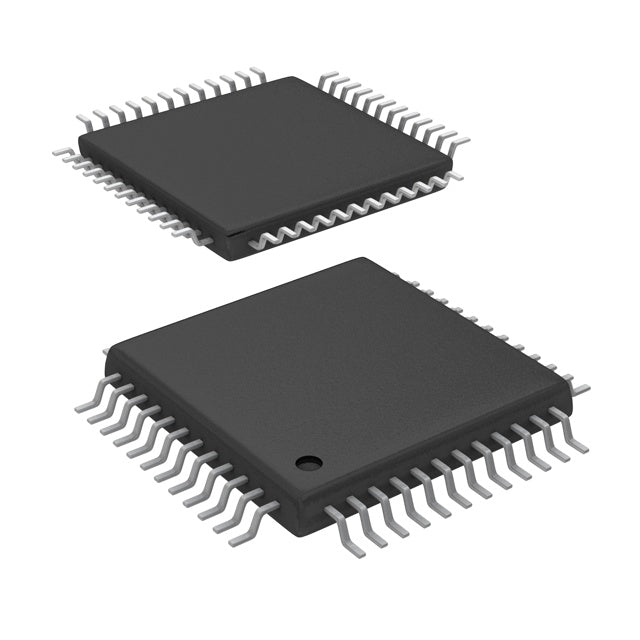

Texas Instruments ADS8381IBPFBT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $53.63 | $53.63 |
| 15+ | $51.93 | $778.95 |
| 25+ | $50.81 | $1,270.25 |
| 50+ | $47.98 | $2,399.00 |
| 100+ | $42.34 | $4,234.00 |
| N+ | $8.47 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 580k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) |
| ROHS |  |
The ADS8381IBPFBT from Texas Instruments is an 18-bit, 580k SPS analog-to-digital converter with a single input channel and a parallel interface. Its S/H-ADC architecture ensures accurate sampling of dynamic signals, while the external reference allows for flexible voltage scaling. Housed in a 48-TQFP package, this ADC operates from -40°C to 85°C, making it suitable for industrial, medical, and high-precision data acquisition applications.
- Exceptional Precision: 18-bit resolution provides superior signal fidelity, ideal for demanding measurement and control applications.
- High-Speed Sampling: 580k SPS throughput enables real-time processing of fast-changing signals without missing data points.
- Industrial Reliability: Wide operating temperature range (-40°C to 85°C) ensures dependable performance in harsh environments.
- Simple Parallel Interface: The parallel output simplifies integration with DSPs and FPGAs, reducing design complexity.
High-Precision Data Acquisition
The 18-bit resolution and 580k SPS sampling rate make the ADS8381IBPFBT ideal for high-accuracy data acquisition systems in scientific instruments and laboratory equipment, capturing fine signal details.
Medical Imaging Equipment
In medical devices like ultrasound and MRI systems, the high resolution and speed of this ADC enable precise digitization of analog sensor outputs, improving image quality and diagnostic accuracy.
Industrial Automation and Control
With its industrial temperature range and parallel interface, the ADS8381IBPFBT is well-suited for precision motor control, robotics, and process automation where accurate feedback is critical.
Vibration and Acoustic Analysis
The high sampling rate and 18-bit resolution allow for detailed analysis of vibration and acoustic signals, making it perfect for condition monitoring and predictive maintenance systems.
Test and Measurement Equipment
Benefit from the ADC's high precision in benchtop multimeters, spectrum analyzers, and other test equipment, ensuring reliable and repeatable measurements.
- Q: What is the resolution of the ADS8381IBPFBT?
- A: The ADS8381IBPFBT is an 18-bit analog-to-digital converter, providing high precision with 262,144 discrete levels.
- Q: What is the sampling rate of this ADC?
- A: It supports a sampling rate of 580k SPS (samples per second), suitable for high-speed precision applications.
- Q: How many input channels does it have?
- A: It has a single input channel (1 channel) for converting one analog signal at a time.
- Q: What interface does the ADS8381IBPFBT use?
- A: It uses a parallel interface for fast and straightforward digital communication with host processors.
- Q: What is the architecture of this ADC?
- A: It features a S/H-ADC (sample-and-hold) architecture, ensuring accurate capture of fast-changing signals.
- Q: What is the operating temperature range?
- A: The ADS8381IBPFBT operates over an industrial temperature range of -40°C to 85°C.
