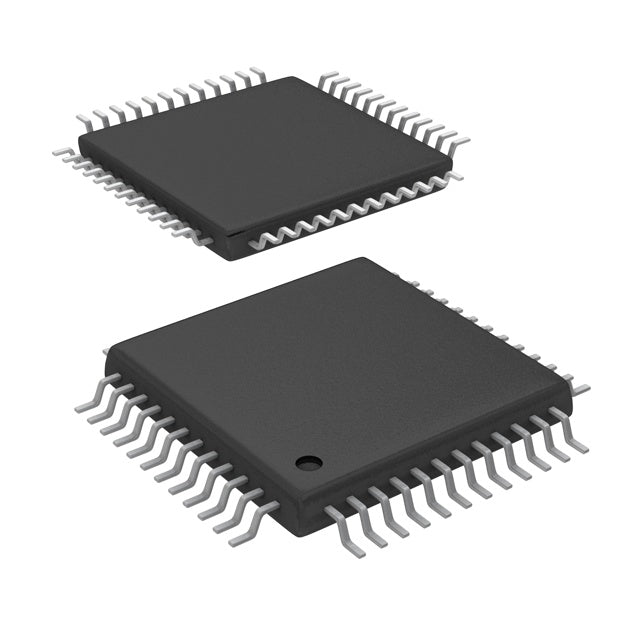

Texas Instruments ADS8405IPFBT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $39.07 | $39.07 |
| 15+ | $37.84 | $567.60 |
| 25+ | $37.02 | $925.50 |
| 50+ | $34.96 | $1,748.00 |
| 100+ | $30.85 | $3,085.00 |
| N+ | $6.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1.25M |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) |
| ROHS |  |
The ADS8405IPFBT from Texas Instruments is a high-performance 16-bit analog-to-digital converter (ADC) designed for demanding applications. It offers a fast sampling rate of 1.25 MSPS and a single input channel, making it suitable for high-speed data acquisition. The parallel interface ensures efficient data transfer to microcontrollers or DSPs. With its S/H-ADC architecture and support for both external and internal references, this ADC provides flexibility and precision for industrial, medical, and automotive applications. It operates over a wide temperature range of -40°C to 85°C and comes in a compact 48-TQFP package.
- High-Speed Performance: 1.25 MSPS sampling rate enables fast and accurate data conversion for real-time systems.
- High Resolution: 16-bit resolution provides fine granularity for precise measurements in critical applications.
- Flexible Reference Options: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, suitable for harsh industrial and automotive environments.
- Parallel Interface: Simplifies high-speed data transfer to processors without complex serial protocols.
High-Speed Data Acquisition Systems
The 1.25 MSPS sampling rate and 16-bit resolution make it ideal for high-speed data acquisition systems where precision and speed are critical, such as in test and measurement equipment.
Industrial Process Control
With its parallel interface and fast conversion rate, it can be used in industrial automation for real-time monitoring and control of processes requiring quick response times.
Medical Instrumentation
The high resolution ensures accurate digitization of biomedical signals, making it suitable for applications like patient monitoring systems and diagnostic devices.
Digital Signal Processing Front-End
Its high-speed parallel output is perfect for feeding digital signal processors (DSPs) in applications like radar, sonar, and communication systems.
Automotive Sensor Interfaces
The wide temperature range (-40°C to 85°C) allows for use in automotive environments for digitizing sensor data in engine control or safety systems.
Precision Instrumentation
The combination of 16-bit resolution and internal/external reference options provides flexibility for precision measurement instruments like digital multimeters and power analyzers.
- Q: What is the resolution of the ADS8405IPFBT?
- A: The ADS8405IPFBT is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It features a maximum sampling rate of 1.25 MSPS (mega samples per second).
- Q: How many input channels does it have?
- A: This device has a single input channel.
- Q: What interface does the ADS8405IPFBT use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture of this ADC?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It is available in a 48-TQFP package.
