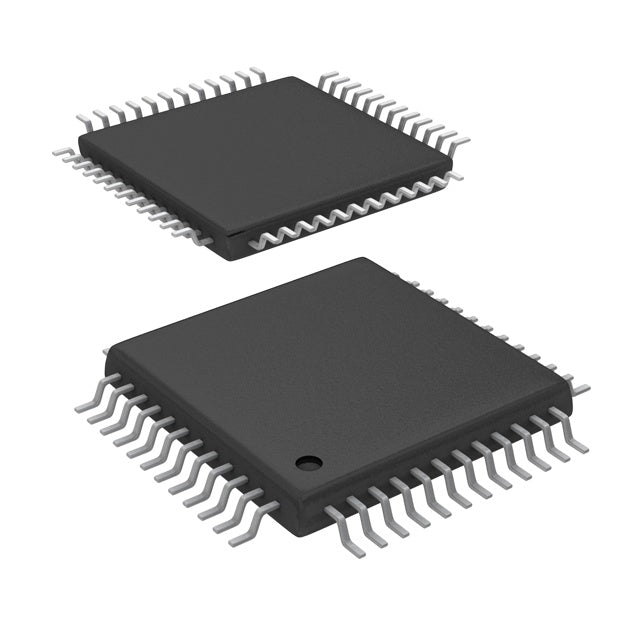

Texas Instruments ADS8406IBPFBT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $59.28 | $59.28 |
| 15+ | $57.41 | $861.15 |
| 25+ | $56.16 | $1,404.00 |
| 50+ | $53.04 | $2,652.00 |
| 100+ | $46.80 | $4,680.00 |
| N+ | $9.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1.25M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) |
| ROHS |  |
The ADS8406IBPFBT is a high-performance 16-bit analog-to-digital converter from Texas Instruments, engineered for demanding applications that require both speed and precision. With a sampling rate of 1.25 MSPS and a single input channel, this ADC delivers accurate digital representations of analog signals. Its parallel interface ensures fast data transfer to microcontrollers or DSPs. The device operates over a wide temperature range of -40°C to 85°C and is housed in a compact 48-TQFP package, making it suitable for industrial, medical, and test equipment.
- High Resolution: 16-bit resolution provides exceptional signal fidelity, crucial for precision measurement applications.
- Fast Sampling Rate: 1.25 MSPS enables the capture of high-frequency signals without aliasing, ideal for real-time control systems.
- Flexible Reference Options: Supports both external and internal references, offering design flexibility to optimize for accuracy or simplicity.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, suitable for harsh industrial environments.
High-Precision Industrial Data Acquisition
The 16-bit resolution and 1.25 MSPS sampling rate make the ADS8406IBPFBT ideal for high-speed, high-precision data acquisition systems in industrial automation, ensuring accurate representation of fast-changing analog signals.
Medical Instrumentation
In medical devices like ultrasound machines and patient monitoring systems, the ADC's high resolution ensures detailed signal fidelity, which is critical for accurate diagnostics.
Motor Control and Power Inverters
The fast sampling rate and parallel interface allow for real-time monitoring of current and voltage in motor control loops, enabling precise and responsive control in variable frequency drives.
Test and Measurement Equipment
For benchtop multimeters and data loggers, the combination of 16-bit resolution and 1.25 MSPS throughput provides the accuracy and speed needed for capturing transient events and precise measurements.
Seismic and Vibration Monitoring
The high resolution is suitable for digitizing signals from geophones and accelerometers, allowing for the detection of subtle vibrations in structural health monitoring systems.
- Q: What is the resolution of the ADS8406IBPFBT?
- A: The ADS8406IBPFBT is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It supports a maximum sampling rate of 1.25 MSPS (mega samples per second).
- Q: How many input channels does it have?
- A: This ADC features a single (1) input channel.
- Q: What interface does the ADS8406IBPFBT use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture of this converter?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It is available in a 48-TQFP package.
