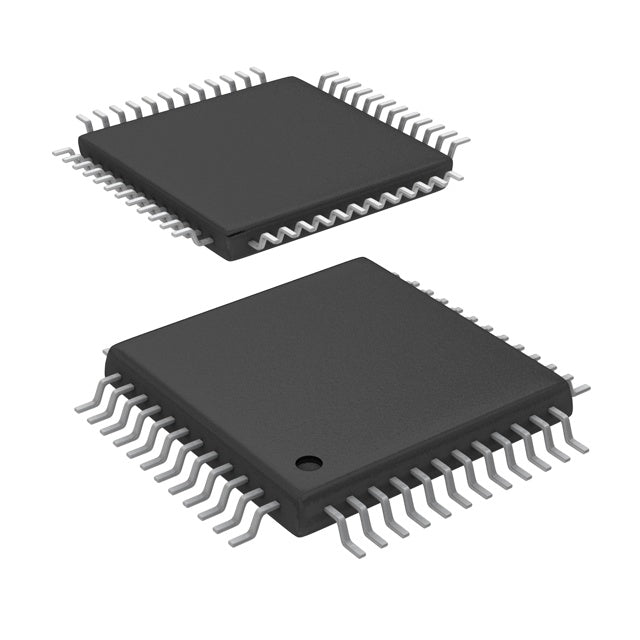

Texas Instruments ADS8412IBPFBT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $89.98 | $89.98 |
| 15+ | $87.14 | $1,307.10 |
| 25+ | $85.25 | $2,131.25 |
| 50+ | $80.51 | $4,025.50 |
| 100+ | $71.04 | $7,104.00 |
| N+ | $14.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) |
| ROHS |  |
The ADS8412IBPFBT from Texas Instruments is a 16-bit analog-to-digital converter designed for precision applications requiring moderate sampling rates. With a sampling rate of 2 MSPS and a single channel, it offers an excellent balance of speed and accuracy. The parallel interface ensures straightforward integration with digital systems. It supports both external and internal voltage references and operates over a wide temperature range of -40°C to +85°C. Packaged in a 48-TQFP, this ADC is well-suited for industrial control, medical instrumentation, and automotive applications.
- High Accuracy: 16-bit resolution provides precise measurement capabilities for demanding applications.
- Moderate Speed: 2 MSPS sampling rate is ideal for real-time control without excessive power consumption.
- Wide Temperature Range: -40°C to +85°C operation ensures reliability in harsh environments.
- Flexible Reference: External and internal reference options support different accuracy requirements.
- Easy Integration: Parallel interface and TQFP package simplify PCB design and assembly.
Precision Industrial Control
The ADS8412IBPFBT offers 16-bit resolution at 2 MSPS, making it ideal for precision motor control and process automation where accurate feedback is essential.
Medical Instrumentation
In patient monitoring devices, this ADC provides high-resolution conversion of biosignals. The wide temperature range (-40°C to 85°C) ensures reliable operation in clinical settings.
Data Acquisition Systems
For portable DAQ devices, the 2 MSPS rate balances speed and power consumption. The parallel interface simplifies connection to microcontrollers.
Automotive Sensor Interfaces
Engine control units and battery management systems benefit from the high accuracy and robust temperature rating of this ADC.
Weighing and Force Measurement
High-resolution load cell interfaces require the precision offered by this 16-bit converter, ensuring accurate weight measurements in industrial scales.
Environmental Monitoring
Precision sensors for temperature, pressure, and humidity can be digitized with high accuracy, supporting scientific research and weather stations.
- Q: What is the resolution of the ADS8412IBPFBT?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 2 MSPS (2M SPS).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses a Parallel interface.
- Q: What is the architecture?
- A: It is based on a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It comes in a 48-TQFP package.
