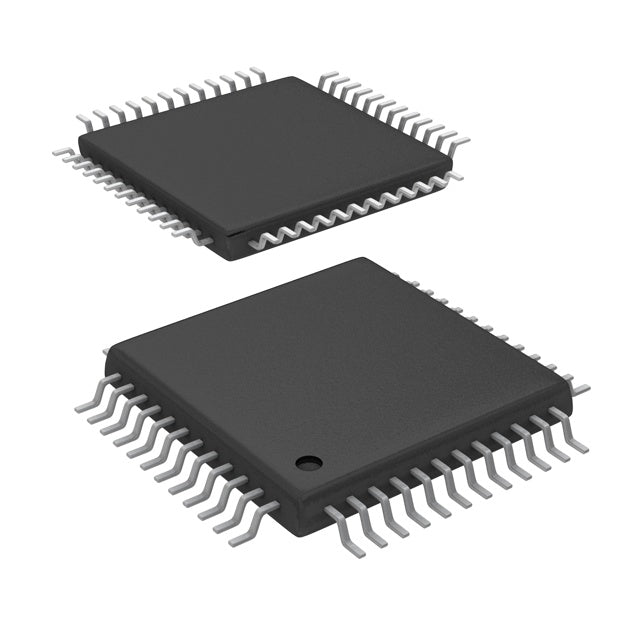

Texas Instruments ADS8422IBPFBT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $69.97 | $69.97 |
| 15+ | $67.76 | $1,016.40 |
| 25+ | $66.29 | $1,657.25 |
| 50+ | $62.60 | $3,130.00 |
| 100+ | $55.24 | $5,524.00 |
| N+ | $11.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 4M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) |
| ROHS |  |
The ADS8422IBPFBT is a 16-bit, 4M SPS analog-to-digital converter (ADC) from Texas Instruments. Featuring a sample-and-hold architecture and a single input channel, it delivers high-speed, accurate conversion for demanding applications. The parallel interface ensures fast data transfer to processors and FPGAs. Housed in a 48-TQFP package, this ADC is well-suited for industrial control, medical imaging, and high-speed data acquisition systems.
- High Speed (4M SPS): Enables real-time capture of fast-changing signals.
- 16-bit Resolution: Provides good accuracy for industrial and medical applications.
- Parallel Interface: Ensures low-latency data transfer for time-critical systems.
- Wide Temperature Range (-40°C to 85°C): Reliable in harsh environments.
High-Speed Data Acquisition
The 4M SPS sampling rate of the ADS8422IBPFBT makes it ideal for high-speed data acquisition systems in test and measurement.
Industrial Motor Control
In servo drives, the ADC's speed and resolution enable precise current and voltage sensing for smooth motor control.
Medical Imaging Systems
For digital X-ray and CT scanners, the ADC digitizes detector signals with high speed and accuracy.
Automotive Test Systems
The wide temperature range and fast sampling support engine control unit (ECU) testing and validation.
Power Quality Analysis
In power monitoring equipment, the ADC captures voltage and current waveforms for harmonic analysis.
Communication Infrastructure
For base station transceivers, the ADS8422 provides reliable digitization of IF signals.
- Q: What is the ADS8422IBPFBT?
- A: It is a 16-bit analog-to-digital converter (ADC) from Texas Instruments with a sample-and-hold architecture.
- Q: What is the resolution?
- A: It provides 16-bit resolution, offering a good balance between precision and speed.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 4M SPS.
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses a parallel interface for high-speed data transfer.
- Q: What is the package type?
- A: It comes in a 48-TQFP package.
