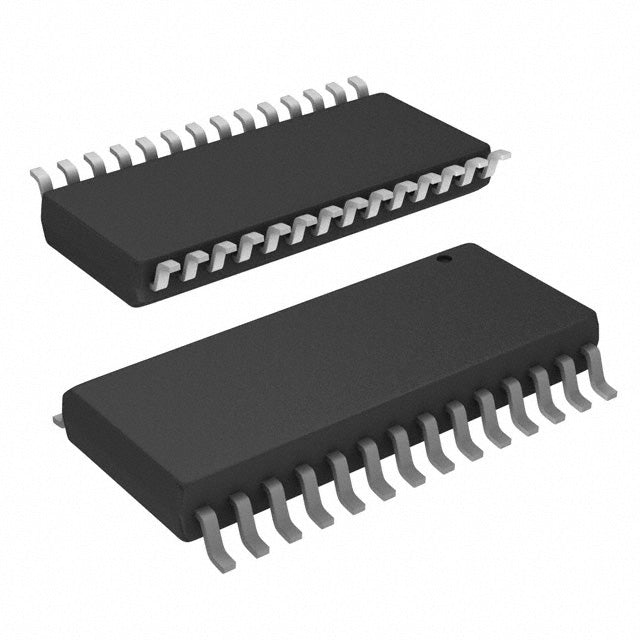

Texas Instruments ADS8505IDW
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.36 | $22.36 |
| 15+ | $21.66 | $324.90 |
| 25+ | $21.19 | $529.75 |
| 50+ | $20.01 | $1,000.50 |
| 100+ | $17.66 | $1,766.00 |
| N+ | $3.53 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The ADS8505IDW from Texas Instruments is a high-resolution 16-bit analog-to-digital converter with a single input channel and a 250 kSPS sampling rate. It features a parallel interface for fast data transfer to host processors. The S/H-ADC architecture ensures accurate sampling of the input signal. With support for both external and internal references, it offers flexibility in setting the input range. Packaged in a 28-SOIC, this ADC is designed for precision applications in medical, industrial, and scientific instrumentation.
- High Resolution: 16-bit resolution offers exceptional accuracy and dynamic range, ideal for demanding measurement applications.
- Fast Parallel Interface: Enables high-speed data transfer, reducing latency in real-time control and measurement systems.
- Flexible Reference: External and internal reference options allow for precise scaling of the input voltage range to match the sensor.
- Industrial Temperature Range: Rated for -40°C to 85°C, ensuring reliable performance in harsh environments.
High-Precision Data Acquisition
The ADS8505IDW is ideal for high-precision data acquisition systems where 16-bit resolution is required to capture small signal variations. Its 250 kSPS sampling rate is sufficient for many industrial and scientific applications.
Medical Imaging and Diagnostics
In medical equipment like MRI and CT scanners, the high resolution of this ADC helps in producing detailed images. The parallel interface allows for high-speed data transfer to image processing units.
Seismic and Vibration Analysis
For geophysical and structural monitoring, the ADS8505IDW can accurately digitize low-frequency vibration signals. The 16-bit resolution provides a wide dynamic range to detect both large and small amplitude events.
Precision Weighing and Force Measurement
In industrial scales and force gauges, this ADC's high resolution ensures accurate weight and force readings. The external/internal reference options allow for precise calibration of the measurement range.
Audio and Acoustic Measurement
The 16-bit resolution and 250 kSPS sampling rate make it suitable for professional audio measurement equipment and acoustic analysis systems, providing high-fidelity signal capture.
- Q: What is the resolution of the ADS8505IDW?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The ADS8505IDW has a sampling rate of 250 kSPS.
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses a Parallel interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC architecture.
- Q: What is the package type?
- A: It is available in a 28-SOIC package.
