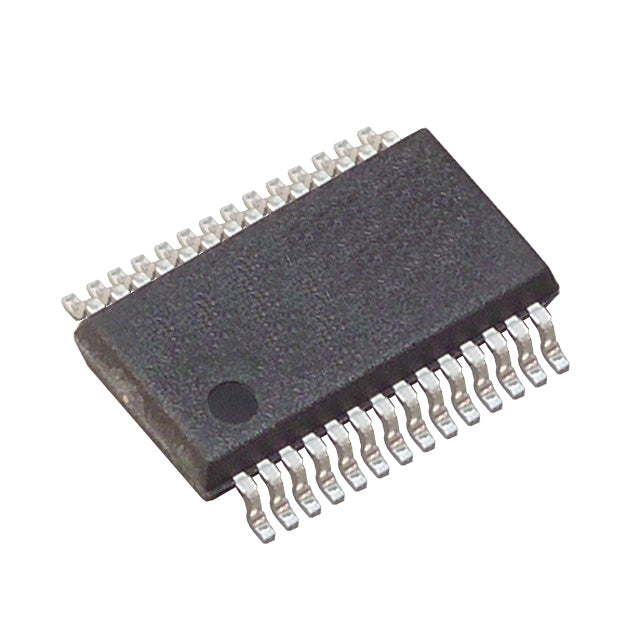

Texas Instruments ADS8515IBDB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.04 | $19.04 |
| 15+ | $18.44 | $276.60 |
| 25+ | $18.04 | $451.00 |
| 50+ | $17.03 | $851.50 |
| 100+ | $15.03 | $1,503.00 |
| N+ | $3.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The ADS8515IBDB is a 16-bit, 250k SPS analog-to-digital converter from Texas Instruments, featuring a sample-and-hold front end. It offers a single input channel and a parallel interface for efficient data transfer. Supporting both external and internal references, this ADC is designed for industrial process control, data acquisition, and medical instrumentation.
- High Accuracy: 16-bit resolution ensures precise signal conversion.
- Fast Sampling: 250k SPS handles dynamic signals effectively.
- Parallel Interface: Enables high-speed communication with microcontrollers and DSPs.
- Flexible Reference Options: Supports external and internal references for design versatility.
Industrial Process Control
The ADS8515IBDB, with its 16-bit resolution and 250k SPS sampling rate, is ideal for industrial process control systems requiring accurate and fast analog-to-digital conversion.
Data Acquisition Systems
Its parallel interface enables high-speed data transfer in multi-channel DAQ systems, making it suitable for test and measurement applications.
Medical Instrumentation
The high resolution and accuracy make it suitable for medical devices such as patient monitors and diagnostic equipment.
Motor Control Systems
In industrial motor drives, this ADC digitizes current and voltage feedback signals for precise control algorithms.
Scientific Research Equipment
Used in laboratory instruments and research equipment where high precision and reliability are required.
- Q: What is the ADS8515IBDB?
- A: It is a 16-bit, high-speed analog-to-digital converter from Texas Instruments.
- Q: What is the resolution?
- A: The resolution is 16 bits.
- Q: What is the sampling rate?
- A: It has a sampling rate of 250k SPS.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the package type?
- A: It is available in a 28-SSOP package.
