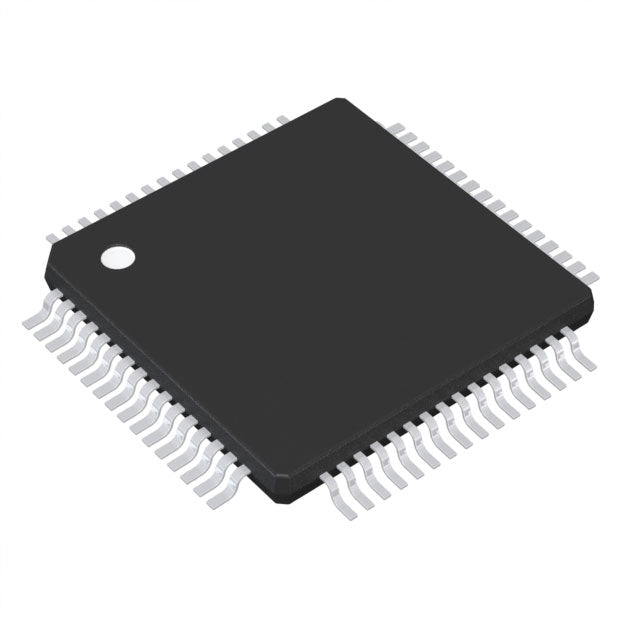

Texas Instruments ADS8584SIPM
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.72 | $18.72 |
| 15+ | $18.13 | $271.95 |
| 25+ | $17.74 | $443.50 |
| 50+ | $16.75 | $837.50 |
| 100+ | $14.78 | $1,478.00 |
| N+ | $2.96 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 330k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | Parallel, Serial |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 4 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.3V ~ 5.25V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The ADS8584SIPM is a 16-bit analog-to-digital converter from Texas Instruments, featuring a sampling rate of 330k SPS. It offers 4 input channels with a PGA-ADC architecture, allowing direct connection to sensors with varying signal levels. The device supports both parallel and serial interfaces for flexible system integration. It operates with external or internal references and across a wide temperature range of -40°C to 125°C. Packaged in a 64-LQFP, it is designed for industrial automation, power monitoring, and automotive applications.
- Integrated PGA: The PGA-ADC architecture eliminates the need for external signal conditioning, simplifying design.
- High-Speed Sampling: 330k SPS enables real-time capture of fast-changing signals in industrial systems.
- Dual Interface Options: Parallel and serial interfaces provide flexibility for various host processors and bus architectures.
- Wide Temperature Range: -40°C to 125°C operation suits demanding automotive and industrial environments.
- Multi-Channel: 4 simultaneous channels reduce component count in multi-sensor applications.
Industrial Automation Control
The 4-channel input and 330k SPS sampling rate of the ADS8584SIPM enable simultaneous monitoring of multiple process variables in PLCs and industrial controllers.
Power Quality Monitoring
With 16-bit resolution and high-speed sampling, this ADC can accurately digitize voltage and current waveforms for power quality analysis in smart grid systems.
Motor Drive Feedback
The PGA-ADC architecture allows direct connection to current shunt resistors, simplifying motor control feedback circuits in variable frequency drives.
Data Acquisition Cards
Its parallel and serial interfaces make it versatile for PCIe or USB-based DAQ cards used in test and measurement systems.
Automotive Battery Testing
Operating up to 125°C, this ADC can handle the harsh conditions of automotive battery test equipment, providing accurate cell voltage measurements.
Medical Imaging Systems
The high sampling rate and resolution support digitization of sensor arrays in ultrasound and other medical imaging modalities.
- Q: What is the resolution of the ADS8584SIPM?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The ADS8584SIPM supports a sampling rate of 330k SPS.
- Q: How many channels does it have?
- A: It has 4 input channels.
- Q: What interfaces are supported?
- A: It supports both Parallel and Serial interfaces.
- Q: What is the architecture?
- A: It uses a PGA-ADC (Programmable Gain Amplifier) architecture.
- Q: What is the package type?
- A: It comes in a 64-LQFP package.
