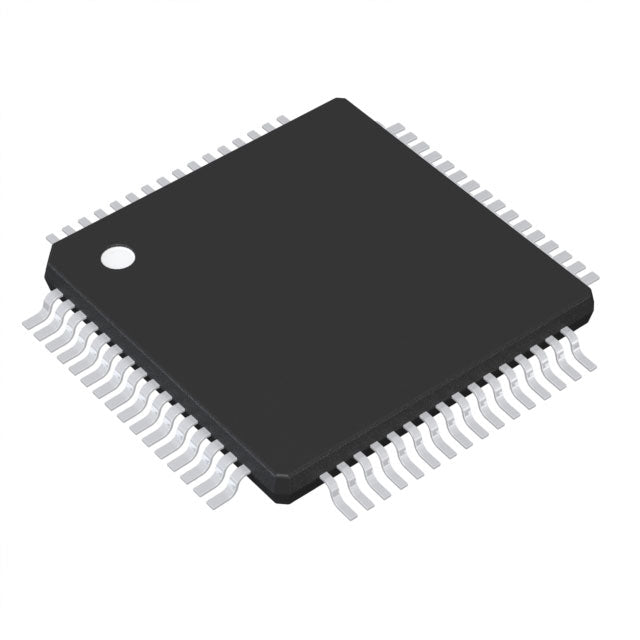

Texas Instruments ADS8586SIPM
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.97 | $22.97 |
| 15+ | $22.25 | $333.75 |
| 25+ | $21.76 | $544.00 |
| 50+ | $20.55 | $1,027.50 |
| 100+ | $18.14 | $1,814.00 |
| N+ | $3.63 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 6 |
| Input Type | Single Ended |
| Data Interface | Parallel, Serial |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 6 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.3V ~ 5.25V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The ADS8586SIPM from Texas Instruments is a high-performance 16-bit, 6-channel analog-to-digital converter (ADC) designed for demanding industrial and automotive applications. With a fast sampling rate of 250k SPS and a flexible PGA-ADC architecture, it delivers precise and reliable data conversion. It offers both parallel and serial interfaces for easy integration with microcontrollers and DSPs. Its wide operating temperature range and 64-LQFP package make it a robust choice for multi-channel data acquisition systems, power monitoring, and motor control.
- High Precision: 16-bit resolution ensures accurate digitization of analog signals for critical measurement applications.
- Multi-Channel Efficiency: 6 simultaneous sampling channels reduce component count and simplify system design for multi-signal acquisition.
- Flexible Integration: Both Parallel and Serial interfaces provide design flexibility for various host controllers and bus architectures.
- Robust Operation: Wide temperature range (-40°C to 125°C) ensures reliable performance in harsh industrial environments.
Industrial Data Acquisition Systems
The 16-bit resolution and 250k SPS sampling rate, combined with 6 channels, make it ideal for high-precision, multi-channel industrial data loggers and control systems.
Power Quality Monitoring
With its 6 simultaneous sampling channels and PGA-ADC architecture, it can accurately measure voltage and current in three-phase power systems for harmonic analysis and power quality monitoring.
Motor Control and Drive Systems
The fast 250k SPS sampling rate and parallel interface enable real-time current and voltage sensing for precise field-oriented control (FOC) in industrial motor drives.
Automotive Battery Management Systems (BMS)
The wide temperature range (-40°C to 125°C) and multi-channel capability allow for accurate monitoring of cell voltages and temperatures in automotive battery packs.
Vibration and Condition Monitoring
The high resolution and sampling rate support the digitization of multiple accelerometer signals for predictive maintenance and machine health monitoring in industrial environments.
Medical Instrumentation
The precision and multi-channel capability are suitable for applications like patient monitoring systems that require simultaneous acquisition of multiple physiological signals.
- Q: What is the resolution of the ADS8586SIPM?
- A: The ADS8586SIPM is a 16-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It supports a sampling rate of 250k SPS (samples per second).
- Q: How many channels does the ADS8586SIPM have?
- A: It features 6 input channels for multi-channel data acquisition.
- Q: What interfaces are available on this device?
- A: It offers both Parallel and Serial interfaces for flexible system integration.
- Q: What is the architecture of the ADS8586SIPM?
- A: It uses a PGA-ADC (Programmable Gain Amplifier - ADC) architecture.
- Q: What is the operating temperature range?
- A: It operates over an industrial temperature range of -40°C to 125°C and comes in a 64-LQFP package.
