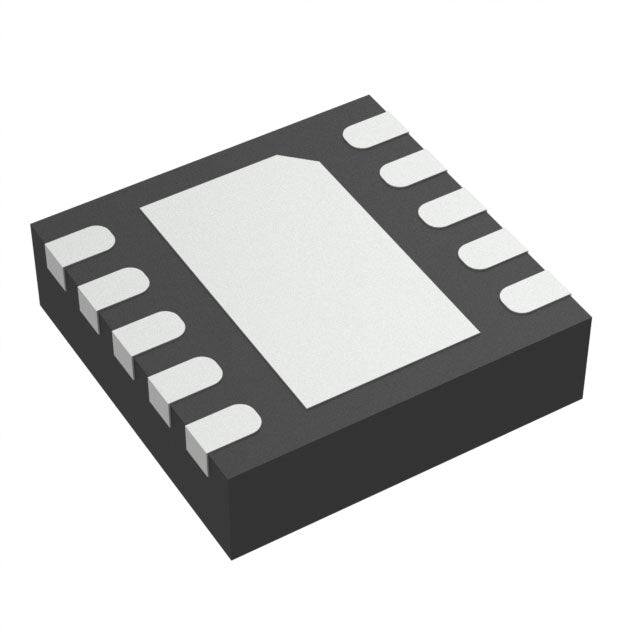

Texas Instruments ADS8860IDRCT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.63 | $18.63 |
| 15+ | $18.04 | $270.60 |
| 25+ | $17.65 | $441.25 |
| 50+ | $16.67 | $833.50 |
| 100+ | $14.71 | $1,471.00 |
| N+ | $2.94 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | microPOWER™ |
| Packaging | Marketplace | Cut Tape (CT) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| ROHS |  |
The Texas Instruments ADS8860IDRCT is a high-performance, 16-bit, 1 MSPS analog-to-digital converter (ADC) featuring a successive approximation register (SAR) architecture. It offers a single input channel and communicates via a fast SPI interface, making it easy to integrate with a wide range of microcontrollers. Housed in a compact 10-VFDFN package, this ADC is designed for space-constrained applications. Its combination of high resolution and speed makes it an excellent choice for demanding applications such as high-speed data acquisition, industrial automation, and precision medical instrumentation.
- High-Speed Precision: Achieves 1 MSPS sampling rate with true 16-bit resolution, enabling accurate capture of fast-changing signals without compromising detail.
- Easy Integration: The standard SPI interface simplifies connection to digital systems, reducing design complexity and time-to-market.
- Compact Footprint: The small 10-VFDFN package is ideal for space-limited designs, allowing for higher component density on the PCB.
- Wide Temperature Range: Guaranteed operation from -40°C to 85°C ensures reliable performance in demanding industrial environments.
High-Speed Data Acquisition Systems
The ADS8860IDRCT's 1 MSPS sampling rate and 16-bit resolution make it ideal for high-speed data acquisition systems where both speed and accuracy are critical, such as in vibration analysis and transient capture.
Precision Sensor Signal Digitization
With its 16-bit resolution and SPI interface, this ADC is perfect for digitizing signals from precision sensors like strain gauges, pressure transducers, and thermocouples, ensuring minimal signal loss and high fidelity.
Portable Medical Instrumentation
The low-power operation and small 10-VFDFN package of the ADS8860IDRCT enable its use in portable medical devices like patient monitors and digital stethoscopes, where battery life and size are crucial.
Industrial Automation and Control
In industrial settings, this ADC can be used for precise motor control, process monitoring, and PLC analog input modules, benefiting from its fast sampling and robust -40°C to 85°C temperature range.
Optical Networking and Communication
The high-speed capability of the ADS8860IDRCT is suitable for digitizing signals in optical networking equipment, such as for monitoring laser power and receiver signal strength indicators.
Battery-Powered IoT Devices
For IoT edge nodes that require periodic, accurate sensor readings, the ADS8860IDRCT offers a balance of performance and power efficiency, making it suitable for smart building sensors and environmental monitors.
- Q: What type of ADC is the ADS8860IDRCT?
- A: The ADS8860IDRCT is a 16-bit successive approximation register (SAR) analog-to-digital converter with a sample-and-hold (S/H) architecture.
- Q: What is the resolution of the ADS8860IDRCT?
- A: It offers a high 16-bit resolution, providing fine granularity for precise measurements.
- Q: What is the maximum sampling rate of the ADS8860IDRCT?
- A: The ADS8860IDRCT supports a fast sampling rate of 1 MSPS (1 million samples per second).
- Q: How many input channels does the ADS8860IDRCT have?
- A: It features a single (1) input channel.
- Q: What digital interface does the ADS8860IDRCT use?
- A: It uses a standard SPI (Serial Peripheral Interface) for communication with microcontrollers and DSPs.
- Q: What is the operating temperature range and package?
- A: It operates from -40°C to 85°C and is available in a 10-VFDFN exposed pad package.
