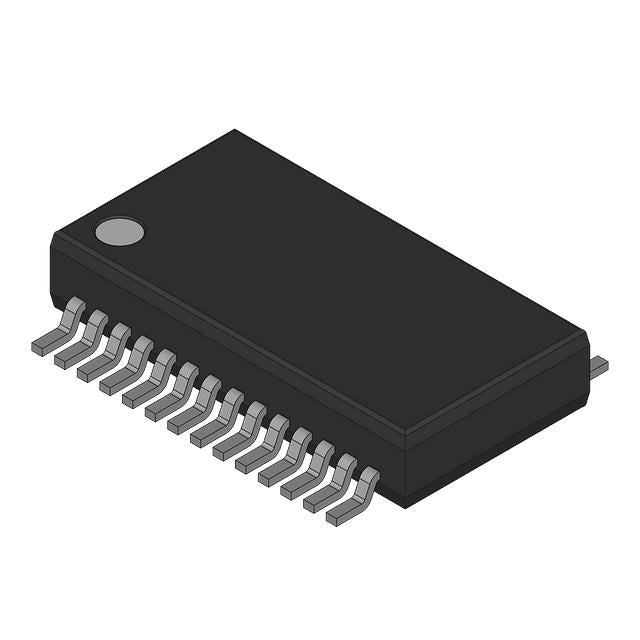

Burr Brown ADS930E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.68 | $22.68 |
| 15+ | $5.22 | $78.30 |
| 25+ | $5.10 | $127.50 |
| 50+ | $4.82 | $241.00 |
| 100+ | $4.25 | $425.00 |
| N+ | $0.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Burr Brown |
| Product Series | SpeedPlus™ |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 30M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The ADS930E from Burr Brown is a high-speed 8-bit analog-to-digital converter designed for applications requiring fast and accurate signal conversion. With a sampling rate of 30 MSPS and a single input channel, this S/H-ADC is ideal for video processing, medical imaging, and communication systems. The parallel interface ensures rapid data transfer to digital processors. Supporting both external and internal references, it provides design flexibility. Operating from -40°C to 85°C in a 28-SSOP package, the ADS930E delivers reliable performance in demanding environments.
- High-Speed 30 MSPS Sampling: Enables real-time digitization of fast signals for video and imaging applications.
- 8-Bit Resolution: Provides adequate precision for video and high-speed control systems.
- Parallel Output: Ensures high-bandwidth data transfer without serial communication delays.
- Flexible Reference: Supports both external and internal references for versatile system design.
- Industrial Temperature Range: Operates from -40°C to 85°C, suitable for harsh environments.
Video Signal Processing
The 30 MSPS sampling rate is well-suited for digitizing composite video signals in applications like video surveillance and imaging systems.
High-Speed Data Acquisition
Ideal for high-speed data acquisition systems in scientific instruments and industrial testing equipment.
Medical Ultrasound
The fast sampling rate supports ultrasound signal processing for medical diagnostic imaging.
Communication Receivers
Parallel output and high speed make it suitable for intermediate frequency (IF) sampling in communication receivers.
Industrial Imaging
Used in machine vision systems for quality control and inspection, where fast image capture is essential.
Radar Systems
The high sampling rate enables digitization of radar return signals for target detection and tracking.
- Q: What is the resolution of the ADS930E?
- A: The ADS930E is an 8-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 30 MSPS (30 million samples per second).
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses a parallel digital interface.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the reference and package?
- A: It supports external and internal references and is available in a 28-SSOP package.
