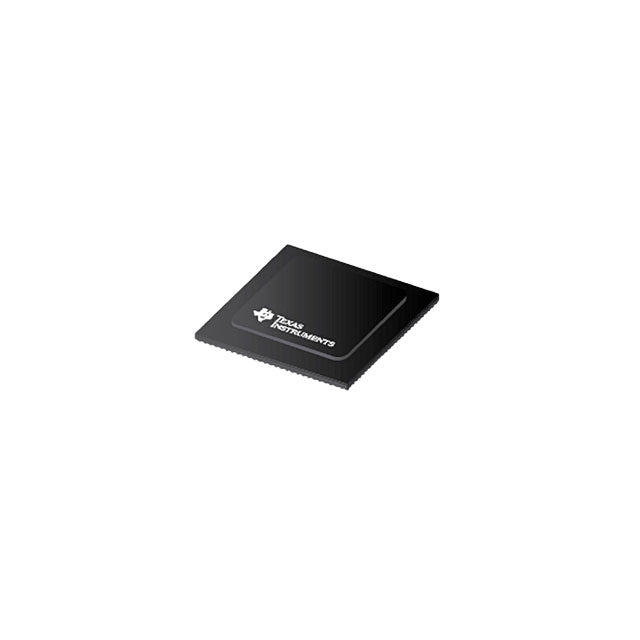

Texas Instruments AM6526BACDXA

Product Overview

The AM6526BACDXA from Texas Instruments represents a powerful solution in the Sitara™ processor family, designed specifically for demanding industrial and embedded applications. This advanced microprocessor unit combines dual ARM® Cortex®-A53 cores running at 1.1GHz with ARM® Cortex®-R5F real-time processing capabilities at 400MHz, delivering exceptional performance for complex computational tasks in automotive, industrial automation, and IoT edge computing environments.

Built on a robust 32-bit architecture, this processor integrates cutting-edge features including PowerVR SGX544-MP1 3D graphics acceleration, flexible memory controller support for DDR3/DDR4/LPDDR4, and comprehensive connectivity options. The industrial-grade design ensures reliable operation across extreme temperature ranges from -40°C to 105°C, making it ideal for mission-critical applications in harsh environments.

Key Features & Benefits

• High-Performance Dual-Core Processing: ARM Cortex-A53 architecture at 1.1GHz ensures smooth multitasking, rapid data processing, and efficient handling of demanding embedded applications with low power consumption
• Real-Time Control Capabilities: Dedicated ARM Cortex-R5F core at 400MHz handles time-critical tasks, real-time control functions, and deterministic processing for industrial automation and safety-critical systems
• Advanced 3D Graphics Engine: Integrated PowerVR SGX544-MP1 GPU enables rich graphical user interfaces, advanced visualization, multi-layer display management, and hardware-accelerated graphics rendering for sophisticated HMI applications
• Flexible Memory Architecture: Compatible with DDR3, DDR4, and LPDDR4 memory technologies, providing optimized performance, power efficiency, and scalability across diverse system requirements and cost targets
• Industrial-Grade Reliability: Extended operating temperature range of -40°C to 105°C (junction temperature) ensures stable, reliable operation in harsh industrial environments, automotive applications, and outdoor installations
• Comprehensive High-Speed Connectivity: Dual Gigabit Ethernet ports (10/100/1000Mbps), USB 3.1, USB 2.0, LVDS, and MIPI-CSI interfaces provide extensive peripheral connectivity and high-bandwidth data transfer capabilities
• Hardware Security Acceleration: Built-in cryptographic engines for 3DES, AES, SHA, MD5, PKA, and DRBG algorithms protect sensitive data, secure communications, and enable trusted boot and secure firmware updates
• Rich Peripheral Integration: Extensive interface support including CAN, I2C, I2S, MMC/SD/SDIO, McASP, McSPI, QSPI, TDM, and UART enables seamless integration with diverse sensors, actuators, and communication modules
• Multi-Voltage I/O Support: Flexible I/O voltage levels (1.2V, 1.35V, 1.8V, 3.3V) ensure compatibility with a wide range of peripheral devices, memory technologies, and legacy interfaces
• Compact Surface Mount Package: 784-FCBGA (23x23mm) package facilitates efficient PCB integration in space-constrained applications while maintaining excellent thermal performance

Target Applications

The AM6526BACDXA is engineered for a wide range of industrial, automotive, and embedded applications requiring high performance, real-time processing, and advanced connectivity:

• Industrial Automation & Control: Factory automation controllers, programmable logic controllers (PLCs), industrial gateways, motion control systems, and distributed control systems (DCS)
• Human-Machine Interfaces (HMI): Advanced touchscreen displays, operator panels with rich graphics, industrial tablets, and multi-display visualization systems
• Building & Energy Management: Smart building controllers, HVAC systems, energy management solutions, lighting control systems, and building automation gateways
• Medical Equipment & Healthcare: Patient monitoring systems, diagnostic equipment, medical imaging devices, portable medical instruments, and healthcare IoT devices
• Automotive Systems: Infotainment platforms, digital instrument clusters, gateway modules, telematics units, and advanced driver assistance systems (ADAS)
• IoT Edge Computing & Gateways: Industrial IoT edge gateways, data aggregation nodes, intelligent sensors, edge analytics platforms, and protocol converters
• Robotics & Machine Vision: Robotic controllers, collaborative robots (cobots), vision processing systems, autonomous navigation, and industrial inspection systems
• Transportation & Fleet Management: Vehicle tracking systems, fleet management terminals, railway signaling, traffic control systems, and intelligent transportation infrastructure
• Test & Measurement Equipment: Oscilloscopes, data acquisition systems, industrial test equipment, and automated test systems

Technical Highlights & System Integration

This 784-FCBGA packaged processor offers extensive peripheral support including CAN bus for automotive and industrial networks, multiple I2C and SPI interfaces for sensor connectivity, McASP and I2S for high-quality audio processing, MMC/SD/SDIO for storage expansion, QSPI for fast boot from external flash, and multiple UART channels for serial communications. The surface mount design facilitates efficient PCB integration in space-constrained applications, while the comprehensive I/O voltage support (1.2V, 1.35V, 1.8V, 3.3V) ensures compatibility with a wide range of peripheral devices, memory technologies, and legacy interfaces.

The processor's dual Gigabit Ethernet ports support advanced networking features including TSN (Time-Sensitive Networking) for industrial Ethernet applications, enabling deterministic real-time communication in factory automation and process control systems. The integrated LVDS and MIPI-CSI interfaces support multiple display configurations and camera inputs, making it ideal for vision-based applications and multi-display HMI systems.

Development Ecosystem & Software Support

Texas Instruments provides comprehensive development tools, software development kits (SDKs), and reference designs to accelerate time-to-market. The processor is supported by Linux, Android, and real-time operating systems (RTOS), with extensive documentation, application notes, and community support available through TI's developer network.
