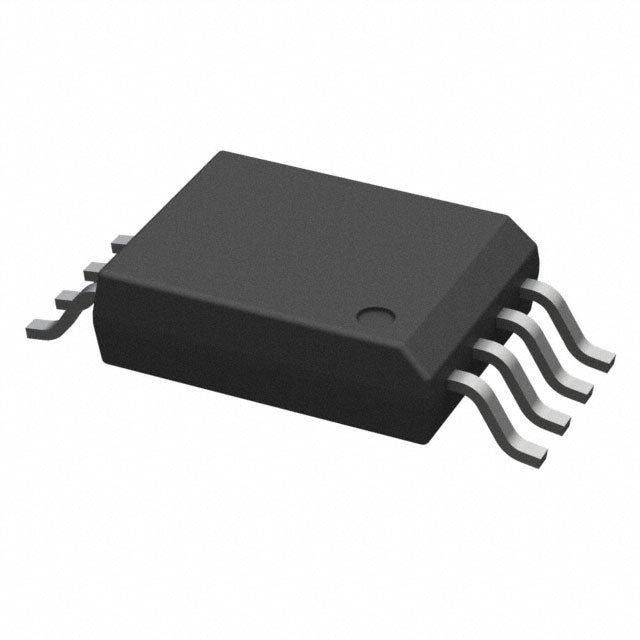

Texas Instruments AMC1303M0510DWV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 29.19 | Dhs. 29.19 |
| 15+ | Dhs. 28.27 | Dhs. 424.05 |
| 25+ | Dhs. 27.66 | Dhs. 691.50 |
| 50+ | Dhs. 26.12 | Dhs. 1,306.00 |
| 100+ | Dhs. 23.05 | Dhs. 2,305.00 |
| N+ | Dhs. 4.61 | Price Inquiry |
Request Quote / Inquiry
AMC1303M0510DWV - 16-Bit Precision Isolated Delta-Sigma Modulator for High-Performance Current & Voltage Sensing
The AMC1303M0510DWV from Texas Instruments is a precision isolated delta-sigma modulator engineered for demanding current and voltage sensing applications in industrial, automotive, and renewable energy systems. This high-resolution isolated module delivers exceptional measurement accuracy with 16-bit resolution and 78kSPS sampling rate, enabling real-time monitoring and control in motor drives, solar inverters, power supplies, and battery management systems.
Why Choose the AMC1303M0510DWV?
- Industry-Leading 16-Bit Resolution: Achieve precise, reliable measurements critical for safety and performance in high-voltage isolation applications
- Fast 78kSPS Sampling Rate: Real-time data acquisition enables responsive control loops and accurate waveform capture
- Flexible 2.7V to 5.5V Supply Range: Seamlessly integrates with both 3.3V and 5V system architectures
- Robust Galvanic Isolation: Protects sensitive control circuitry from high common-mode voltages and provides superior noise immunity
- Extended Industrial Temperature Range: Proven reliability from -40°C to 125°C for harsh operating environments
- Compact 8-SOIC Surface Mount Package: Space-efficient design simplifies PCB layout and reduces assembly costs
- RoHS Compliant & Long Lifecycle Support: Meets global environmental standards with Texas Instruments' commitment to product longevity
Target Applications & Use Cases
- Motor Drive Systems: Phase current sensing for FOC (Field-Oriented Control) and sensorless control algorithms
- Solar & Renewable Energy: DC link and string current monitoring in photovoltaic inverters
- Power Supply Feedback: Precision current-mode control and overcurrent protection
- Industrial Automation: Process control, servo drives, and variable frequency drives (VFDs)
- Battery Management Systems (BMS): Coulomb counting and cell balancing in EV and energy storage applications
- High-Voltage Measurement: Isolated voltage sensing with external resistor dividers
Technical Advantages
The AMC1303M0510DWV features a second-order delta-sigma architecture that delivers high linearity and low offset drift over temperature. The CMOS serial data interface simplifies integration with DSPs and microcontrollers, while the isolated design eliminates ground loops and enhances system safety. With its combination of precision, speed, and robustness, this modulator is the ideal choice for next-generation power electronics.
Quality & Compliance
All Texas Instruments AMC1303M0510DWV units are 100% factory tested and ship with full traceability documentation. RoHS compliant and backed by TI's industry-leading technical support and comprehensive datasheets.
All specifications are subject to change without notice. Please refer to the manufacturer's official datasheet for the most current and detailed technical information.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Type | Isolated Module |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 78k |
| Data Interface | CMOS, Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
