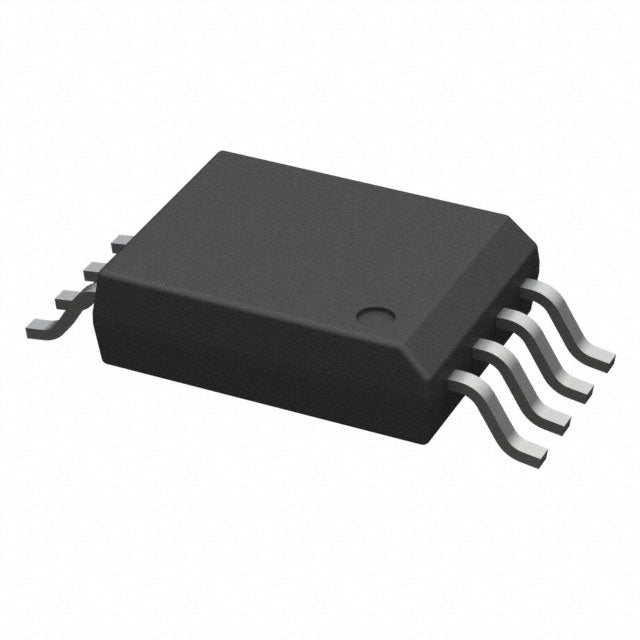

Texas Instruments AMC1303M2520DWV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 29.60 | Dhs. 29.60 |
| 15+ | Dhs. 28.69 | Dhs. 430.35 |
| 25+ | Dhs. 28.06 | Dhs. 701.50 |
| 50+ | Dhs. 26.50 | Dhs. 1,325.00 |
| 100+ | Dhs. 23.39 | Dhs. 2,339.00 |
| N+ | Dhs. 4.68 | Price Inquiry |
Request Quote / Inquiry
AMC1303M2520DWV - 16-Bit Isolated Delta-Sigma Modulator
The AMC1303M2520DWV from Texas Instruments is a precision 16-bit isolated delta-sigma modulator designed for high-performance analog-to-digital conversion in demanding industrial, automotive, and power management applications. This single-channel isolated module delivers exceptional accuracy with a 78kSPS sampling rate and operates across a wide 2.7V to 5.5V supply range.
Key Features & Benefits
- High-Resolution Conversion: 16-bit resolution ensures precise signal measurement for critical applications
- Galvanic Isolation: Isolated module architecture protects sensitive circuitry and enables safe high-voltage monitoring
- Fast Sampling: 78kSPS sampling rate captures dynamic signals with excellent fidelity
- Flexible Interface: CMOS and Serial data interfaces simplify integration with microcontrollers and DSPs
- Wide Operating Range: -40°C to 125°C temperature range suits harsh industrial environments
- Dual Supply Architecture: Separate analog and digital supply inputs optimize noise performance
- Compact Surface Mount Package: 8-SOIC package (7.50mm width) saves board space
- RoHS Compliant: Meets environmental standards for global distribution
Typical Applications
- Motor control and drive systems
- Solar inverters and power conversion
- Battery management systems
- Industrial automation and process control
- High-voltage current sensing
- Isolated voltage measurement
Why Choose AMC1303M2520DWV?
As an authorized distributor, we provide genuine Texas Instruments components with full traceability, datasheets, and technical support. This isolated delta-sigma modulator is ideal for engineers requiring precision measurement with galvanic isolation in power electronics, motor control, and industrial sensing applications.
Order now for fast global shipping and design-in support from our technical team.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Type | Isolated Module |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 78k |
| Data Interface | CMOS, Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
